200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit

200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor)

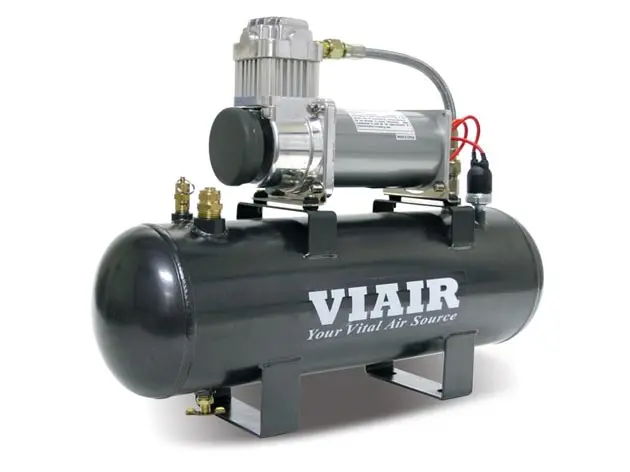

Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.

Features & Specifications

Features	Specifications
– 380C Pewter Air Compressor	– 12-Volt
– Thermal Overload Protector	– Permanent Magnetic Motor
– 2.0 Gallon Air Tank	– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Pressure Switch (165 PSI On / 200 PSI Off)	– Max. Working Pressure: 200 PSI
– Safety Valve (250 PSI)	– Max. Amp Draw: 23 Amps
– Drain Cock	– Ingress Protection Rating: IP67
– Leader Hose with Check Valve	– Dimensions: 19″L x 5.9″W x 14.2″H
	– Net Weight: 21.05 lbs.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	1.58	12	0	44.7	12
10	1.45	13	1.0	38.1	13
20	1.22	14	2.0	33.3	15
30	1.17	15	3.0	30.6	16
40	1.09	17	4.0	29.1	17
50	1.06	17	5.0	27.1	18
60	1.02	17	6.0	25.3	19
70	0.97	18	7.0	24.0	20
80	0.92	18	8.0	22.4	21
90	0.88	19	9.0	21.0	23
100	0.85	20	10.0	19.5	21
110	0.81	21	11.0	18.2	20
120	0.78	22	12.0	16.7	19
130	0.74	23	13.0	15.2	19
140	0.71	21	14.0	13.5	18
150	0.67	20
160	0.64	20
170	0.60	19
180	0.57	19
190	0.53	19
200	0.49	18

Fill Rates

2.0 Gallon Tank	Fill Rate
0 to 200 PSI	5 min. 30 sec. (± 15 sec.)
165 to 200 PSI	1 min. 25 sec. (± 05 sec.)

User Manual

Dimensional Drawing
