200 PSI 2.0 Gal. Tank High-Flow-200 Air Source Kit (12V, 200 PSI Compressor)

$ 438.75 438.75 USD $ 438.75

$ 438.75

    This combination does not exist.

    Contact Us



    Barcode: 818114003080
    Shipping Weight: 28 lb
    Internal Reference: VA-20008
    Brand: Viair
    Manufacture Part Number: 20008

    200 PSI 2.0 Gal. Tank High-Flow-200 Air Source Kit (12V, 200 PSI Compressor)

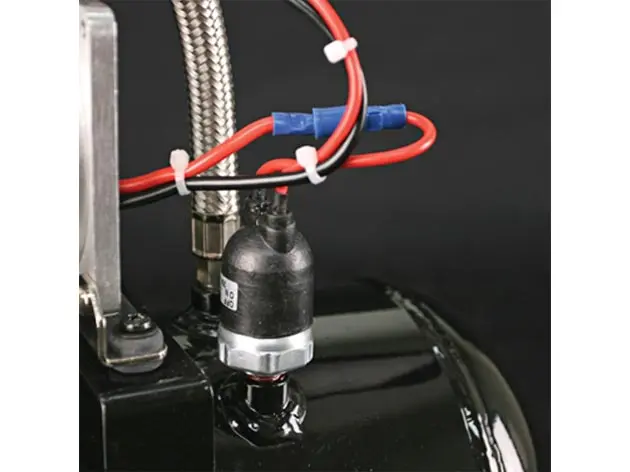

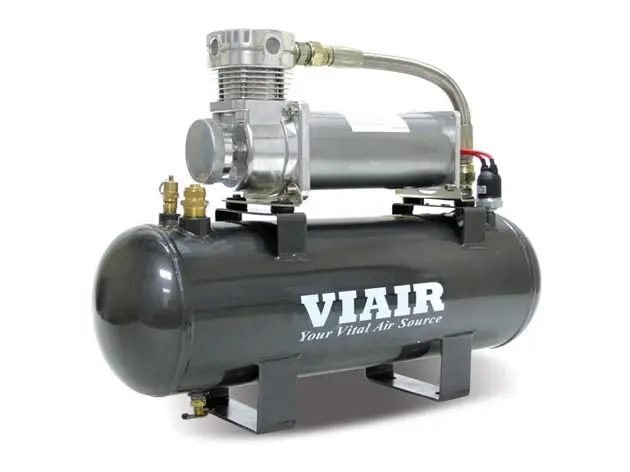

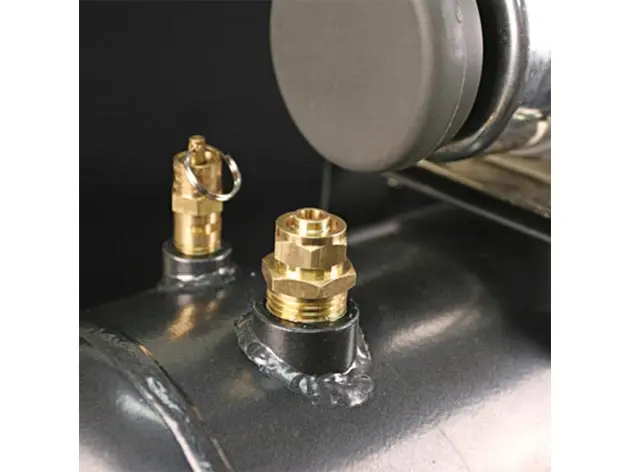

    High-Flow 200 PSI Air Source Kits come with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.

    Features & Specifications

    Features
    		Specifications
    – 480C Pewter Air Compressor– 12-Volt
    – Thermal Overload Protector– Permanent Magnetic Motor
    – 2.0 Gallon Air Tank– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – Pressure Switch (165 PSI On / 200 PSI Off)– Max. Working Pressure: 200 PSI

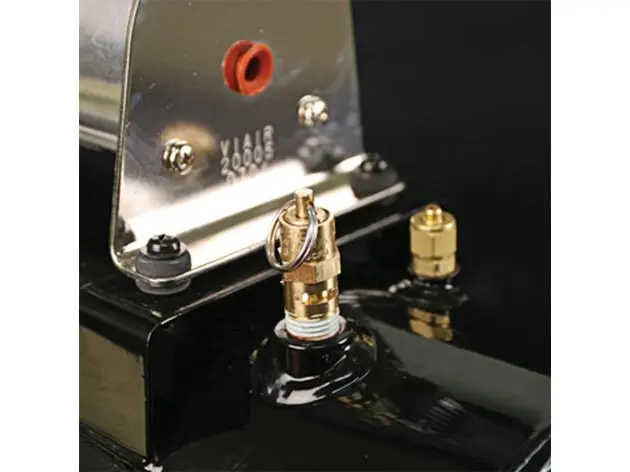

    – Safety Valve (250 PSI)– Max. Amp Draw: 23 Amps

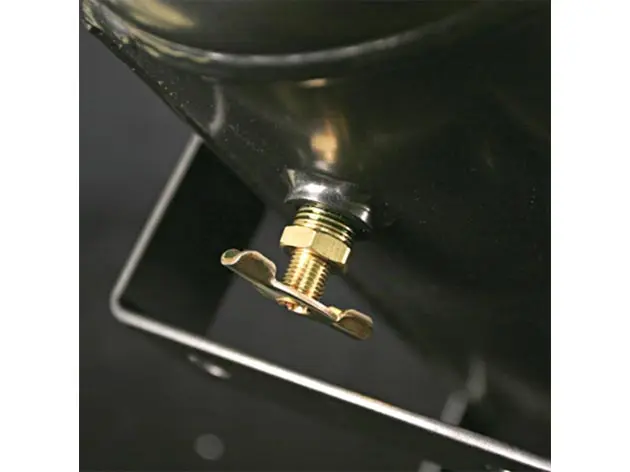

    – Drain Cock– Ingress Protection Rating: IP67
    – Leader Hose with Check Valve– Dimensions: 19.7″L x 5.9″W x 13.9″H

    		– Net Weight: 22.95 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.8610
    		0
    		52.710
    10
    		1.7512
    		1.047.513
    20
    		1.5914
    		2.043.215
    30
    		1.5215
    		3.040.716
    40
    		1.4516
    		4.038.118
    50
    		1.41175.035.318
    60
    		1.3318
    		6.032.619
    70
    		1.2618
    		7.030.020
    80
    		1.2019
    		8.027.022
    90
    		1.1319
    		9.025.022
    100
    		1.0720
    		10.022.321
    110
    		0.99
    		2111.020.121
    120
    		0.932312.018.321
    130
    		0.882213.016.020
    140
    		0.82
    		22
    		14.014.019
    150
    		0.7521



    160
    		0.7121



    170
    		0.6721



    180
    		0.6121



    190
    		0.5520



    200
    		0.5119



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 200 PSI3 min. 56 sec. (± 10 sec.)
    165 to 200 PSI1 min. 02 sec. (± 05 sec.)
