Dual Stealth Black 380C Onboard Air System (200 PSI · 2.54 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

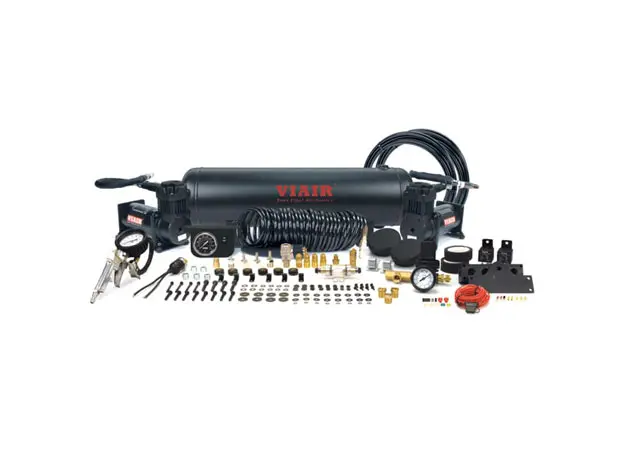

VIAIR’s Dual 380C Onboard Air System is a pre-packaged compressed air solution that provides two 380C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
Performance Data
PSI | CFM | A | BAR | LPM | A |
0
| 2.54 | 28
| 0
| 72.0 | 28
|
10
| 2.42 | 29
| 1.0 | 67.0 | 30
|
20
| 2.30 | 31
| 2.0 | 61.7 | 33
|
30
| 2.17 | 33
| 3.0 | 57.5 | 34
|
40
| 2.07 | 34
| 4.0 | 53.5 | 36
|
50
| 1.95 | 35
| 5.0 | 49.8 | 37
|
60
| 1.87 | 36
| 6.0 | 46.4 | 39
|
70
| 1.78 | 37
| 7.0 | 43.3 | 41
|
80
| 1.70 | 38
| 8.0 | 40.3 | 43
|
90
| 1.61 | 39
| 9.0 | 37.2 | 44
|
100
| 1.54 | 41
| 10.0 | 34.5 | 42
|
110
| 1.46 | 42
| 11.0 | 31.8 | 41
|
120
| 1.40 | 43
| 12.0 | 29.2 | 40
|
130
| 1.32 | 44
| 13.0 | 26.6 | 38
|
140
| 1.25 | 43
| 14.0 | 23.7 | 37
|
150
| 1.19 | 42
|
|
|
|
160
| 1.12 | 41
|
|
|
|
170
| 1.06 | 40
|
|
|
|
180
| 0.99 | 39
|
|
|
|
190
| 0.93 | 38
|
|
|
|
200
| 0.86 | 37
|
|
|
|
* Supply Voltage: 13.8 Volts
