Dual Stealth Black 380C Onboard Air System (200 PSI · 2.54 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

(0 review)

Dual Stealth Black 380C Onboard Air System (200 PSI · 2.54 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

$ 884.75 $ 884.75

Add to cart
Contact Us

Barcode: 818114002366
Shipping Weight: 48.9 lb
Internal Reference: VA-20014
Brand: Viair
Manufacture Part Number: 20014

Dual Stealth Black 380C Onboard Air System (200 PSI · 2.54 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

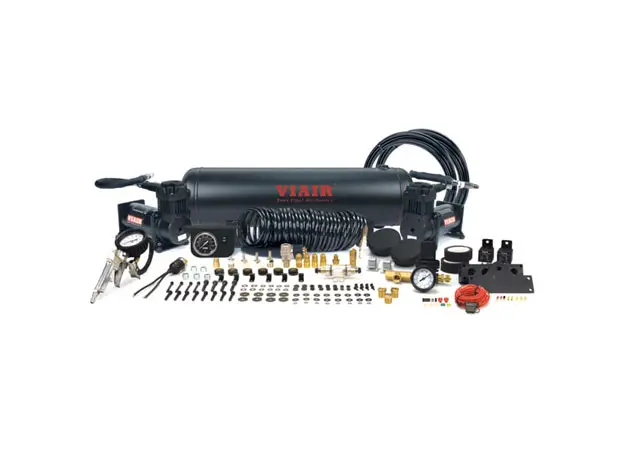

VIAIR’s Dual 380C Onboard Air System is a pre-packaged compressed air solution that provides two 380C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Features & Specifications

Features
Specifications
– 2.5 Gallon 200 PSI VIAIR Air Tank– 12-Volt
– (2) 380C VIAIR (Stealth Black or Pewter) Compressors
w/Thermal Overload Protectors		– Permanent Magnetic Motor
– 30ft. Coil Hose with Quick Connects (20013)or– Duty Cycle: 100% @ 100 PSI
– 30ft. Black Inside Braided Coil Hose (20014)– Max. Working Pressure: 200 PSI
– Tire Inflation Gun with 200 PSI Gauge– Max. Amp Draw: 44 Amps
– 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
– Sealed Pressure Switch (165 PSI on, 200 PSI off)–
– 200 PSI Illuminated Dash Panel Gauge–
– (2) 40-amp Relays–
– Inline Fuse Holder–
– 1/4” Quick Connect Coupler (M)–
– 1/4” 250 PSI Safety Valve–
– 1/4” Drain Cock–
– (2) 1/8” BSP to 1/4” NPT–
– (3) 1/4” Compression Fittings–
– 5 Pc. 1/4” NPT Plugs Kit
– 6-Port Billet Manifold with Mounting Bracket (1/4”)–
– (2) 20ft. 1/4” Air Line Included–
 – Electrical Connections–
All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

Performance Data

PSICFMABARLPMA
0
2.5428
0
72.028
10
2.4229
1.067.030
20
2.3031
2.061.733
30
2.1733
3.057.534
40
2.0734
4.053.536
50
1.9535
5.049.837
60
1.8736
6.046.439
70
1.7837
7.043.341
80
1.7038
8.040.343
90
1.6139
9.037.244
100
1.5441
10.034.542
110
1.4642
11.031.841
120
1.4043
12.029.240
130
1.3244
13.026.638
140
1.2543
14.023.737
150
1.1942



160
1.1241



170
1.0640



180
0.9939



190
0.9338



200
0.8637



* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon TankFill Rate
0 to 200 PSI3 min. 13 sec. (± 10 sec.)
165 to 200 PSI53 sec. (± 05 sec.)
37″ x 12.5″Fill Rate
0 to 30 PSI5 min. 00 sec. (± 15 sec.)
15 to 30 PSI2 min. 30 sec. (± 10 sec.)
40″ x 15.5″Fill Rate
0 to 30 PSI5 min. 25 sec. (± 15 sec.)
15 to 30 PSI2 min. 40 sec. (± 10 sec.)
