Dual 400C Onboard Air System (4.55 CFM · 150 PSI · 60 Amp · 12V · 2.0 Gal. Tank)

$ 839.95 839.95 USD $ 839.95

$ 839.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002311
    Shipping Weight: 45.5 lb
    Internal Reference: VA-20015
    Brand: Viair
    Manufacture Part Number: 20015

    Dual 400C Onboard Air System (4.55 CFM · 150 PSI · 60 Amp · 12V · 2.0 Gal. Tank)

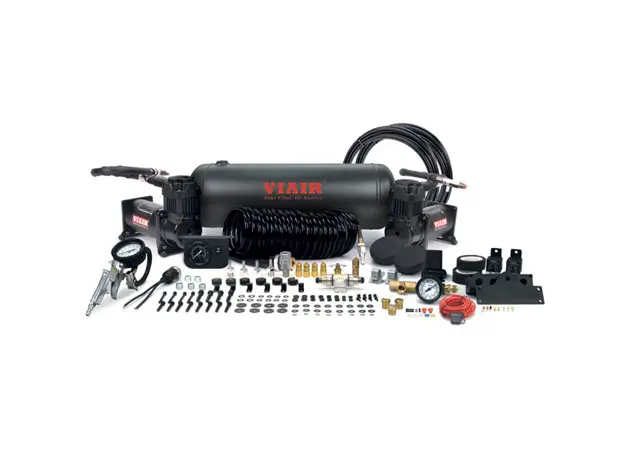

    VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.0 Gallon 150 PSI VIAIR Air Tank– 12-Volt
    – (2) 400C VIAIR (Chrome or Stealth Black) Compressors
    w/Thermal Overload Protectors    		– Permanent Magnetic Motor
    – 30ft. Coil Hose with Quick Connects (20015) or– Duty Cycle: 33% @ 100 PSI
    – 30ft. Black Sleeved Inside Braided Coil Hose (20016)– Max. Working Pressure: 150 PSI
    – Tire Inflation Gun with 200 PSI Gauge– Max. Amp Draw: 60 Amps
    – 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
    – Sealed Pressure Switch (110 PSI on, 145 PSI off)–
    – 150 PSI Illuminated Dash Panel Gauge–
    – (2) 40-amp Relays–
    – Inline Fuse Holder–
    – 1/4” Quick Connect Coupler (M)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (2) 1/8” BSP to 1/4” NPT–
    – (3) 1/4” Compression Fittings–
    – 5 Pc. 1/4” NPT Plugs Kit–
    – 6-Port Billet Manifold with Mounting Bracket (1/4”)–
     – (2) 20ft. 1/4” Air Line Included–
    – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		4.5539
    		0
    		129.039
    10
    		4.1840
    		1.0115.641
    20
    		3.9642
    		2.0106.545
    30
    		3.7445
    		3.096.647
    40
    		3.5046
    		4.086.450
    50
    		3.2548
    		5.078.453
    60
    		3.0050
    		6.070.858
    70
    		2.8352
    		7.064.0
    		57
    80
    		2.6055
    		8.057.554
    90
    		2.4659
    		9.050.6
    		52
    100
    		2.2857
    		10.043.750
    110
    		2.1255



    120
    		1.9753



    130
    		1.8052



    140
    		1.6051



    150
    		1.4849



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI1 min. 00 sec.(± 05 sec.)
    110 to 145 PSI20 sec. (± 03 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI3 min. 25 sec. (± 10 sec.)
    15 to 30 PSI1 min. 40 sec. (± 05 sec.)
    40″ x 15.5″Fill Rate
    0 to 30 PSI3 min. 35 sec. (± 10 sec.)
    15 to 30 PSI1 min. 45 sec. (± 05 sec.)
