Dual 450C Onboard Air System (3.28 CFM · 150 PSI · 44 Amp · 12V · 2.5 Gal. Tank)

$ 879.95 879.95 USD $ 879.95

$ 879.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002328
    Shipping Weight: 52.7 lb
    Internal Reference: VA-20017
    Brand: Viair
    Manufacture Part Number: 20017


    Dual 450C Onboard Air System (3.28 CFM · 150 PSI · 44 Amp · 12V · 2.5 Gal. Tank)

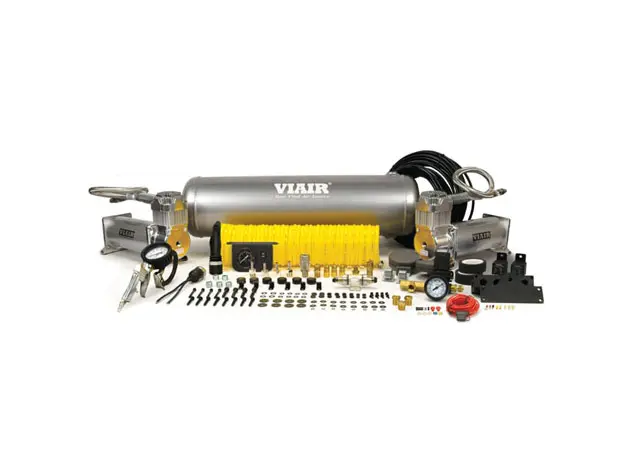

    VIAIR’s Dual 450C Onboard Air System is a pre-packaged compressed air solution that provides two 450C, 100% duty cycle compressors, a 2.5 gallon air tank, inline pressure regulator, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.5 Gallon 150 PSI VIAIR Air Tank– 12-Volt
    – (2) 450C VIAIR Compressors w/Thermal Overload Protectors– Permanent Magnetic Motor
    – 30ft. Coil Hose with Quick Connects– Duty Cycle: 100% @ 100 PSI
    – Tire Inflation Gun with 200 PSI Gauge– Max. Working Pressure: 150 PSI
    – 0-220 PSI Pressure Regulator– Max. Amp Draw: 44 Amps
    – Sealed Pressure Switch (110 PSI on, 145 PSI off)– Ingress Protection Rating: IP67
    – 150 PSI Illuminated Dash Panel Gauge–
    – (2) 40-amp Relays–
    – Inline Fuse Holder–
    – 1/4” Quick Connect Coupler (M)–
    – 1/4” 175 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (2) 1/8” BSP to 1/4” NPT–
    – (3) 1/4” Compression Fittings–
    – 5 Pc. 1/4” NPT Plugs Kit–
    – 6-Port Billet Manifold with Mounting Bracket (1/4”)–
    – (2) 20ft. 1/4” Air Line Included–
     – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		3.2828
    		0
    		93.028
    10
    		3.0429
    		1.083.030
    20
    		2.7932
    		2.075.434
    30
    		2.6534
    		3.071.037
    40
    		2.5436
    		4.066.640
    50
    		2.4438
    		5.061.041
    60
    		2.3340
    		6.056.042
    70
    		2.1941
    		7.052.044
    80
    		2.0542
    		8.047.043
    90
    		1.9443
    		9.042.342
    100
    		1.8544
    		10.037.541
    110
    		1.7244



    120
    		1.6243



    130
    		1.5042



    140
    		1.3841



    150
    		1.2741



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 145 PSI1 min. 30 sec. (± 05 sec.)
    110 to 145 PSI31 sec. (± 03 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI3 min. 50 sec. (± 10 sec.)
    15 to 30 PSI1 min. 55 sec. (± 05 sec.)
    40″ x 15.5″Fill Rate
    0 to 30 PSI4 min. 15 sec. (± 10 sec.)
    15 to 30 PSI2 min. 15 sec. (± 05 sec.)
