Dual 444C Onboard Air System (200 PSI · 3.53 CFM · 40 Amp · 12V · 2.5 Gal. Tank)

$ 899.95 899.95 USD $ 899.95

$ 899.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002335
    Shipping Weight: 52.3 lb
    Internal Reference: VA-20019
    Brand: Viair
    Manufacture Part Number: 20019

    Dual 444C Onboard Air System (200 PSI · 3.53 CFM · 40 Amp · 12V · 2.5 Gal. Tank)

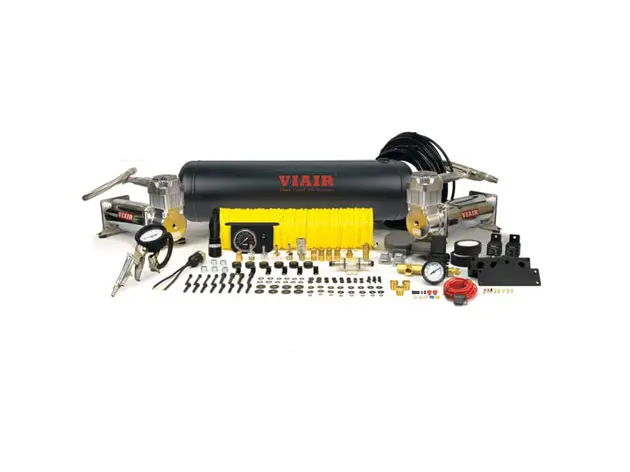

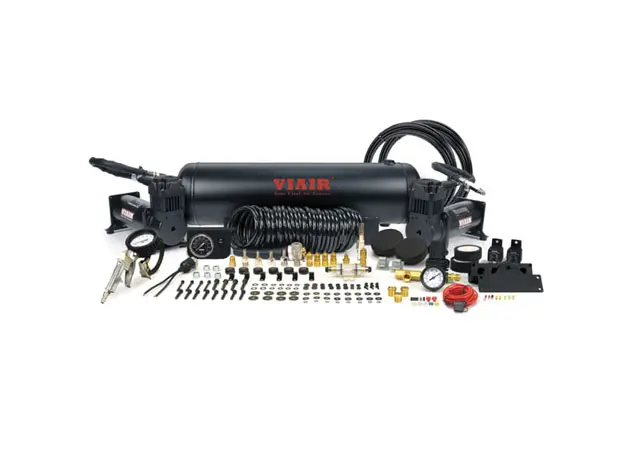

    VIAIR’s Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two 444C, 100% duty cycle compressors, a 2.5 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – 2.5 Gallon 200 PSI VIAIR Air Tank– 12-Volt
    – (2) 444C VIAIR (Chrome or Stealth Black) Compressors
    w/Thermal Overload Protectors    		– Permanent Magnetic Motor
    – 30ft. Coil Hose with Quick Connects (20019) OR– Duty Cycle: 100% @ 100 PSI
    – 30ft. Black Sleeved Inside Braided Coil Hose (20020)– Max. Working Pressure: 200 PSI
    – Tire Inflation Gun with 200 PSI Gauge– Max. Amp Draw: 40 Amps
    – 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
    – Sealed Pressure Switch (165 PSI on, 200 PSI off)–
    – 200 PSI Illuminated Dash Panel Gauge–
    – (2) 40-amp Relays–
    – Inline Fuse Holder–
    – 1/4” Quick Connect Coupler (M)–
    – 1/4” 250 PSI Safety Valve–
    – 1/4” Drain Cock–
    – (2) 1/8” BSP to 1/4” NPT–
    – (3) 1/4” Compression Fittings–
    – 5 Pc. 1/4” NPT Plugs Kit–
    – 6-Port Billet Manifold with Mounting Bracket (1/4”)–
    – (2) 20ft. 1/4” Air Line Included–
     – Electrical Connections–
    All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

    Performance Data

    PSICFMABARLPMA
    0
    		3.5325
    		0
    		100.025
    103.2527
    		1.088.539
    202.9731
    		2.081.333
    302.8633
    		3.075.634
    402.7234
    		4.070.636
    502.5835
    		5.065.537
    602.4736
    		6.059.039
    702.3537
    		7.053.140
    802.1938
    		8.047.739
    902.0339
    		9.043.239
    1001.9040
    		10.038.838
    1101.7440
    		11.034.737
    1201.6539
    		12.030.636
    1301.5339
    		13.025.834
    1401.4138
    		14.023.833
    1501.3238



    1601.2237



    1701.1336



    1801.0035



    1900.8934



    2000.8533



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI2 min. 30 sec. (± 10 sec.)
    165 to 200 PSI46 sec. (± 05 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI3 min. 50 sec. (± 10 sec.)
    15 to 30 PSI1 min. 55 sec. (± 05 sec.)
    40″ x 15.5″Fill Rate
    0 to 30 PSI4 min. 40 sec. (± 10 sec.)
    15 to 30 PSI2 min. 00 sec. (± 05 sec.)
