Dual Stealth Black 444C Onboard Air System (200 PSI · 3.53 CFM · 40 Amp · 12V · 2.5 Gal. Tank)

(0 review)

Dual Stealth Black 444C Onboard Air System (200 PSI · 3.53 CFM · 40 Amp · 12V · 2.5 Gal. Tank)

$ 959.50 $ 959.50

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 655255431194
Shipping Weight: 56 lb
Internal Reference: VA-20020
Brand: Viair
Manufacture Part Number: 20020

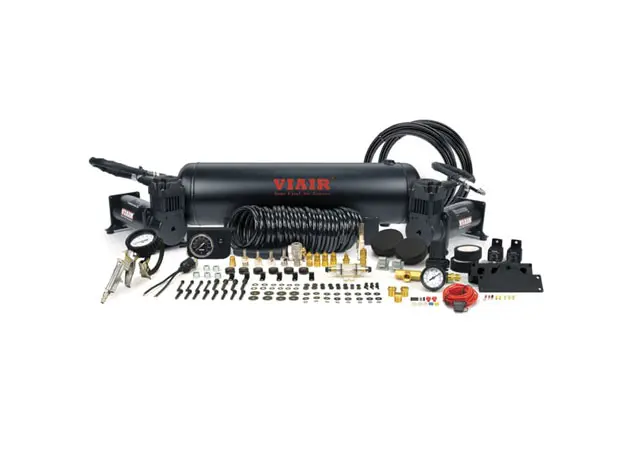

Dual Stealth Black 444C Onboard Air System (200 PSI · 3.53 CFM · 40 Amp · 12V · 2.5 Gal. Tank)

VIAIR’s Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two 444C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Features & Specifications

Features
Specifications
– 2.5 Gallon 200 PSI VIAIR Air Tank– 12-Volt
– (2) 444C VIAIR (Chrome or Stealth Black) Compressors
w/Thermal Overload Protectors		– Permanent Magnetic Motor
– 30ft. Coil Hose with Quick Connects (20019) OR– Duty Cycle: 100% @ 100 PSI
– 30ft. Black Sleeved Inside Braided Coil Hose (20020)– Max. Working Pressure: 200 PSI
– Tire Inflation Gun with 200 PSI Gauge– Max. Amp Draw: 40 Amps
– 0-220 PSI Pressure Regulator– Ingress Protection Rating: IP67
– Sealed Pressure Switch (165 PSI on, 200 PSI off)–
– 200 PSI Illuminated Dash Panel Gauge–
– (2) 40-amp Relays–
– Inline Fuse Holder–
– 1/4” Quick Connect Coupler (M)–
– 1/4” 250 PSI Safety Valve–
– 1/4” Drain Cock–
– (2) 1/8” BSP to 1/4” NPT–
– (3) 1/4” Compression Fittings–
– 5 Pc. 1/4” NPT Plugs Kit–
– 6-Port Billet Manifold with Mounting Bracket (1/4”)–
– (2) 20ft. 1/4” Air Line Included–
 – Electrical Connections–
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included.

Performance Data

PSICFMABARLPMA
0
3.5325
0
100.025
10
3.2527
1.088.539
20
2.9731
2.081.333
30
2.8633
3.075.634
40
2.7234
4.070.636
50
2.5835
5.065.537
60
2.4736
6.059.039
70
2.3537
7.053.140
80
2.1938
8.047.739
90
2.0339
9.043.239
100
1.9040
10.038.838
110
1.7440
11.034.737
120
1.6539
12.030.636
130
1.5339
13.025.834
140
1.4138
14.023.833
150
1.3238



160
1.2237



170
1.1336



180
1.0035



190
0.8934



200
0.8533



* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon TankFill Rate
0 to 200 PSI2 min. 30 sec. (± 10 sec.)
165 to 200 PSI46 sec. (± 05 sec.)
37″ x 12.5″Fill Rate
0 to 30 PSI3 min. 50 sec. (± 10 sec.)
15 to 30 PSI1 min. 55 sec. (± 05 sec.)
40″ x 15.5″Fill Rate
0 to 30 PSI4 min. 40 sec. (± 10 sec.)
15 to 30 PSI2 min. 00 sec. (± 05 sec.)
