Dual Platinum Gen 2 485C Onboard Air System (200 PSI · 3.82 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

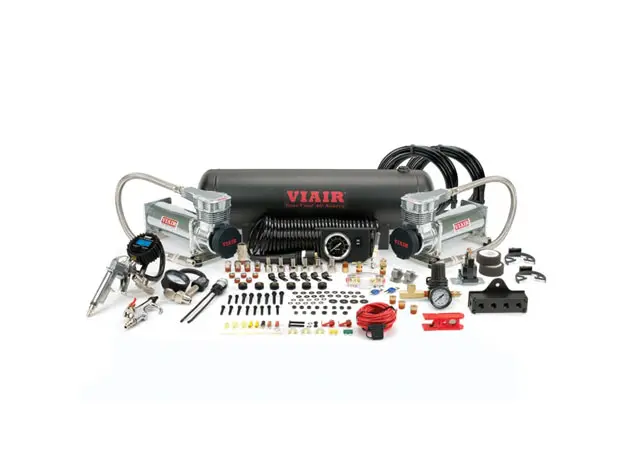

VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Features & Specifications

Features	Specifications
– 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)	– 12-Volt
– (2) 485C (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors	– Permanent Magnetic Motor
– Illuminated Dash Panel Gauge Kit, Black Face 200 PSI	– Duty Cycle: 100% @ 200 PSI
– Digital Tire Inflation Gun (180PSI)	– Max. Working Pressure: 200 PSI
– 0-220 PSI Pressure Regulator	– Max. Air Tank Size: 10.0 Gallon
– Sealed Pressure Switch (165 PSI on, 200 PSI off)	– Combined Max. Amp Draw: 44 Amps
– 1/4” Drain Cock	– Ingress Protection Rating: IP67
– Heavy Duty 80 Amp Relay	– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
– Mini ANL Fuse Holder with 60 Amp Fuse	– Net Weight: 22.10 lbs.
– 1/4” Quick Connect Coupler (M)	–
– 1/4” 250 PSI Safety Valve	–
– (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings	–
– 6-Port Billet Manifold with Mounting Bracket (1/4”)	–
– (2) 20ft. 1/4” Air Line Included	–
– 5 Pc. 1/4” NPT Plugs Kit	–
– Extension Braided Black Coil Hose	–
– Rubber Tip Blow Gun	–
– 3-in-1 Air Down Gauge	–
– Stainless Steel Air Line Cutter	–
*All Fittings are NPT rated unless otherwise noted.*	Wiring harness NOT included.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	3.82	23	0	110.0	23
10	3.51	26	1.0	93.0	27
20	3.27	30	2.0	84.0	31
30	3.05	32	3.0	75.0	35
40	2.90	35	4.0	71.0	37
50	2.73	37	5.0	65.0	39
60	2.61	38	6.0	61.0	41
70	2.45	40	7.0	55.0	41
80	2.34	41	8.0	50.0	42
90	2.24	41	9.0	45.0	42
100	2.09	41	10.0	41.0	42
110	1.94	42	11.0	39.0	41
120	1.87	42	12.0	34.0	40
130	1.72	42	13.0	32.0	40
140	1.64	42	14.0	29.0	39
150	1.55	42
160	1.48	41
170	1.37	41
180	1.29	41
190	1.22	40
200	1.13	39

* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon Tank	Fill Rate
0 to 200 PSI	2 min. 20 sec. (± 10 sec.)
165 to 200 PSI	35 sec. (± 03 sec.)
37″ x 12.5″	Fill Rate
0 to 30 PSI	3 min. 46 sec. (± 10 sec.)
15 to 30 PSI	1 min. 52 sec. (± 10 sec.)
40″ x 15.5″	Fill Rate
0 to 30 PSI	4 min. 39 sec. (± 15 sec.)
15 to 30 PSI	2 min. 02 sec. (± 10 sec.)
