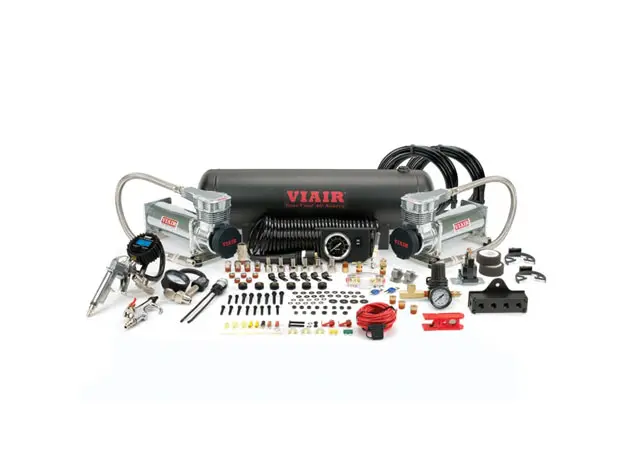

Dual Platinum Gen 2 485C Onboard Air System (200 PSI · 3.82 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

(0 review)

Dual Platinum Gen 2 485C Onboard Air System (200 PSI · 3.82 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

$ 1,151.25 $ 1,151.25

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114002410
Shipping Weight: 56 lb
Internal Reference: VA-20085
Brand: Viair
Manufacture Part Number: 20085

Dual Platinum Gen 2 485C Onboard Air System (200 PSI · 3.82 CFM · 44 Amp · 12V · 2.5 Gal. Tank)

VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended.  Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Features & Specifications

Features
Specifications
– 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)– 12-Volt
– (2) 485C (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors		– Permanent Magnetic Motor
– Illuminated Dash Panel Gauge Kit, Black Face 200 PSI– Duty Cycle: 100% @ 200 PSI
– Digital Tire Inflation Gun (180PSI)– Max. Working Pressure: 200 PSI
– 0-220 PSI Pressure Regulator– Max. Air Tank Size: 10.0 Gallon
– Sealed Pressure Switch (165 PSI on, 200 PSI off)– Combined Max. Amp Draw: 44 Amps
– 1/4” Drain Cock– Ingress Protection Rating: IP67
– Heavy Duty 80 Amp Relay– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
– Mini ANL Fuse Holder with 60 Amp Fuse– Net Weight: 22.10 lbs.
– 1/4” Quick Connect Coupler (M)–
– 1/4” 250 PSI Safety Valve–
– (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings–
– 6-Port Billet Manifold with Mounting Bracket (1/4”)–
– (2) 20ft. 1/4” Air Line Included–
– 5 Pc. 1/4” NPT Plugs Kit–
– Extension Braided Black Coil Hose–
– Rubber Tip Blow Gun–
– 3-in-1 Air Down Gauge–
– Stainless Steel Air Line Cutter–
All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

Performance Data

PSICFMABARLPMA
0
3.8223
0
110.023
103.5126
1.093.027
203.2730
2.084.031
303.0532
3.075.035
402.9035
4.071.037
502.7337
5.065.039
602.6138
6.061.041
702.4540
7.055.041
802.3441
8.050.042
902.24419.045.042
1002.094110.041.042
1101.944211.039.041
1201.874212.034.040
1301.724213.032.040
1401.644214.029.039
1501.5542


1601.4841


1701.3741


1801.2941


1901.2240



200
1.1339



* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon TankFill Rate
0 to 200 PSI2 min. 20 sec. (± 10 sec.)
165 to 200 PSI35 sec. (± 03 sec.)
37″ x 12.5″Fill Rate
0 to 30 PSI3 min. 46 sec. (± 10 sec.)
15 to 30 PSI1 min. 52 sec. (± 10 sec.)
40″ x 15.5″Fill Rate
0 to 30 PSI4 min. 39 sec. (± 15 sec.)
15 to 30 PSI2 min. 02 sec. (± 10 sec.)
