Dual Stealth Black 425C Onboard Air System (175 PSI, 4.80 CFM, 58 Amp, 12V, 2.5 Gal. Tank)

(0 review)

Dual Stealth Black 425C Onboard Air System (175 PSI, 4.80 CFM, 58 Amp, 12V, 2.5 Gal. Tank)

$ 980.50 $ 980.50

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114002427
Shipping Weight: 46 lb
Internal Reference: VA-20175
Brand: Viair
Manufacture Part Number: 20175

Dual Stealth Black 425C Onboard Air System (175 PSI, 4.80 CFM, 58 Amp, 12V, 2.5 Gal. Tank)

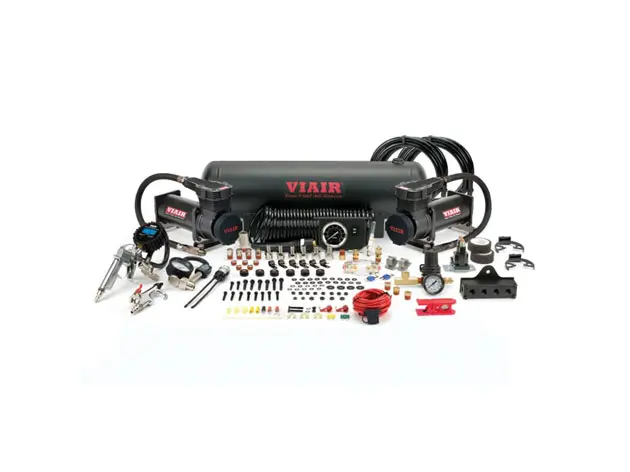

VIAIR’s Gen. 2 Dual 425C Onboard Air System (OBA) is our fastest filling OBA, featuring our new 425C Gen.2 compressors capable of putting out 4.80 CFM at 0 PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 425C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Features & Specifications

Features
Specifications
– 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)– 12-Volt
– (2) 425C Platinum or Stealth Black VIAIR Compressors– Permanent Magnetic Motor
– Illuminated Dash Panel Gauge Kit, Black Face 200 PSI– Duty Cycle: 50% @ 100 PSI
– Digital Tire Inflation Gun (180PSI)– Duty Cycle: 33% @ 175 PSI
– 0-220 PSI Pressure Regulator– Max. Working Pressure: 175 PSI
– Sealed Pressure Switch (140 PSI on, 175 PSI off)– Max. Air Tank Size: 5.0 Gallon
– 1/4” Drain Cock– Combined Max. Amp Draw: 60 Amps
– Heavy Duty 80 Amp Relay– Ingress Protection Rating: IP67
– Mini ANL Fuse Holder with 60 Amp Fuse– Dimensions: 9.25″L x 4.14″W x 6.59″H
– 1/4” Quick Connect Coupler (M)– Net Weight: 11.10 lbs.
– 1/4” 250 PSI Safety Valve–
– (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings–
– 6-Port Billet Manifold with Mounting Bracket (1/4”)–
– (2) 20ft. 1/4” Air Line Included–
– 5 Pc. 1/4” NPT Plugs Kit–
– Extension Braided Black Coil Hose–
– Rubber Tip Blow Gun–
– 3-in-1 Air Down Gauge–
– Stainless Steel Air Line Cutter–
All Fittings are NPT rated unless otherwise noted.Wiring harness NOT included.

Performance Data

PSICFMABARLPMA
0
4.8040
0
136.040
104.6343
1.0125.045
204.4247
2.0118.048
304.1548
3.0111.053
403.9352
4.0100.055
503.7054
5.095.056
603.5355
6.084.057
703.3556
7.080.057
803.18578.072.057
902.98579.069.056
1002.835710.059.055
1102.6858
11.055.053
1202.555712.049.051
1302.4456



1402.2755



1502.1054



1601.9553



1701.8052



175
1.7451



* Supply Voltage: 13.8 Volts

Fill Rates

2.5 Gallon TankFill Rate
0 to 175 PSI1 min. 40 sec. (± 05 sec.)
140 to 175 PSI28 sec. (± 03 sec.)
5.0 Gallon TankFill Rate
0 to 175 PSI3 min. 06 sec. (± 10 sec.)
140 to 175 PSI57 sec. (± 05 sec.)
37″ x 12.5″ TIRESFill Rate
0 to 30 PSI3 min. 16 sec. (± 10 sec.)
15 to 30 PSI57 sec. (± 05 sec.)
40″ x 15.5″ TIRESFill Rate
0 to 30 PSI4 min. 01 sec. (± 10 sec.)
15 to 30 PSI2 min. 11 sec. (± 05 sec.)
