250C IG Series Air Compressor - 24 Volt

https://universalair-uas.odoo.com/web/image/product.template/329/image_1920?unique=529793e
(0 review)

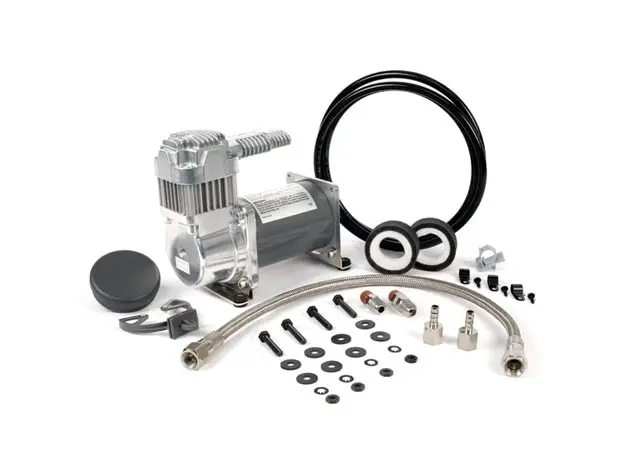

250C IG Series Compressor Kit (24V, Intercooler Head, 100% Duty, Sealed)

$ 316.95 316.95 USD $ 316.95

$ 316.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002588
    Shipping Weight: 9 lb
    Internal Reference: VA-25058
    Brand: Viair
    Manufacture Part Number: 25058

    250C IG Series Compressor Kit (24V, Intercooler Head, 100% Duty, Sealed)

    Industrial Grade (IG) compressors feature an innovative patents pending head design for better heat dissipation and are specifically designed to fill reservoir tanks. All IG compressors are certified CE spec. and feature outstanding sealing properties against the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. This unit is oil-less and is rated at 13.8 volts to a charging car battery.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt / 24-Volt
    – Vibration Isolators– Permanent Magnetic Motor
    – Mounting Hardware– Duty Cycle: 100% @ 100 PSI
    – Heavy Duty 1/4″ NPT Check Valve– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided PTFE-Lined Leader Hose– Max. Air Tank Size: 2.5 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 11 Amps
    – Remote Mount Air Filter Assembly– Max. 24V Amp Draw: 6 Amps
    – (2) Replacement Air Filter Elements– Ingress Protection Rating: IP67
    – Installation Instructions– Max. Ambient Temp: +158°F

    		– Min. Ambient Temp: -40°F

    		– Dimensions: 7.4″L x 3.9″W x 6.75″H

    		– Net Weight: 6.75 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		0.8860
    		25.06
    10
    		0.817
    		1.022.67
    20
    		0.787
    		2.021.08
    30
    		0.738
    		3.019.09
    40
    		0.679
    		4.017.310
    50
    		0.659
    		5.015.410
    60
    		0.60106.014.211
    70
    		0.55107.012.511
    80
    		0.52108.011.311
    90
    		0.49109.010.311
    100
    		0.451110.08.711
    110
    		0.4111


    120
    		0.3911


    130
    		0.3611


    140
    		0.3211


    150
    		0.2910


    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    0
    		0.886
    		0
    		25.06
    10
    		0.8171.022.67
    20
    		0.7872.021.08
    30
    		0.738
    		3.019.09
    40
    		0.679
    		4.017.310
    50
    		0.659
    		5.015.410
    60
    		0.60106.014.211
    70
    		0.55107.012.511
    80
    		0.52108.011.311
    90
    		0.49109.010.311
    100
    		0.451110.08.711
    110
    		0.4111


    120
    		0.3911


    130
    		0.3611


    140
    		0.3211


    150
    		0.2910



    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 50 sec. (± 10 sec.)
    85 to 105 PSI27 sec. (± 05 sec.)
    0 to 145 PSI2 min. 45 sec. (± 10 sec.)
    110 to 145 PSI1 min. 05 sec. (± 05 sec.)
    2.5 Gallon TankFill Rate
    0 to 105 PSI4 min. 45 sec. (± 10 sec.)
    85 to 105 PSI1 min. 05 sec. (± 05 sec.)
    0 to 145 PSI7 min. 05 sec. (± 15 sec.)
    110 to 145 PSI2 min. 35 sec. (± 10 sec.)

    24-Volt Compressor

    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 45 sec. (± 10 sec.)
    85 to 105 PSI26 sec. (± 05 sec.)
    0 to 145 PSI2 min. 45 sec. (± 10 sec.)
    110 to 145 PSI55 sec. (± 10 sec.)
    2.5 Gallon TankFill Rate
    0 to 105 PSI4 min. 15 sec. (± 10 sec.)
    85 to 105 PSI1 min. 00 sec. (± 05 sec.)
    0 to 145 PSI7 min. 00 sec. (± 15 sec.)
    110 to 145 PSI2 min. 15 sec. (± 10 sec.)
