Dual Value Pack 280C Compressor Kit (12V, 30% Duty, Sealed)

$ 299.95 299.95 USD $ 299.95

$ 299.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002823
    Shipping Weight: 17 lb
    Internal Reference: VA-28002
    Brand: Viair
    Manufacture Part Number: 28002

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    MINI WORKHORSE
    Capable of providing a maximum of 150 PSI
    & a 30% duty cycle.

    COMPACT
    Perfect option for simple or compact air suspension setups.

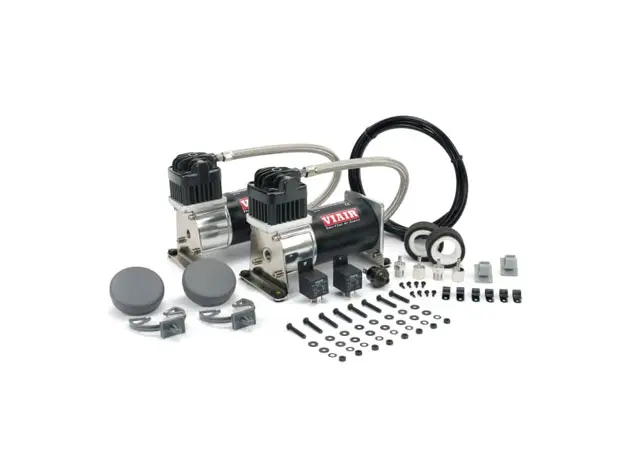

    The VIAIR 280C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.


    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – (2) 485C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) VIAIR Removable Filter Covers– Duty Cycle: 100% @ 200 PSI
    – (2) Remote Mount Brackets– Max. Working Pressure: 200 PSI
    – (2) Sets of Remote Mount Fittings– Max. Air Tank Size: 10.0 Gallon
    – (2) Sets of Spare Air Filter Elements– Combined Max. Amp Draw: 44 Amps
    – (2) Leader Hose Clips– Ingress Protection Rating: IP67
    – (6) Air Line Clips with Included Hardware– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Net Weight: 22.10 lbs.
    – (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)–
    – (2) 40-Amp Relays–
    – (1) One Pressure Switch (165 PSI on, 200 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		3.8223
    		0
    		110.023
    10
    		3.5126
    		1.093.027
    20
    		3.2730
    		2.084.031
    30
    		3.0532
    		3.075.035
    40
    		2.9035
    		4.071.037
    50
    		2.7337
    		5.065.039
    60
    		2.6138
    		6.061.041
    70
    		2.4540
    		7.055.041
    80
    		2.34418.050.042
    90
    		2.24419.045.042
    100
    		2.094110.041.042
    110
    		1.944211.039.041
    120
    		1.874212.034.040
    130
    		1.724213.032.040
    140
    		1.644214.029.039
    150
    		1.5542


    160
    		1.4841



    170
    		1.3741



    180
    		1.2941


    190
    		1.2240



    200
    		1.1339



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI2 min. 20 sec. (± 05 sec.)
    165 to 200 PSI35 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI4 min. 50 sec. (± 15 sec.)
    165 to 200 PSI1 min. 15 sec. (± 05 sec.)


    – (2) 280C Black Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    02.9621084.021
    102.78241.075.525
    202.58262.069.028
    302.38283.062.530
    402.27294.056.531
    502.13315.051.532
    601.97316.047.032
    701.88327.043.532
    801.74328.039.532
    901.62329.036.032
    1001.563210.033.532
    1101.4632
    1201.3732
    1301.2932
    1401.2332
    1501.1632

    * Supply Voltage: 13.8 Volts

    2.0 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 34 sec. (± 10 sec.)
    110 to 145 PSI29 sec. (± 05 sec.)
    2.5 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 44 sec. (± 10 sec.)
    110 to 145 PSI31 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 145 PSI3 min. 54 sec. (± 15 sec.)
    110 to 145 PSI1 min. 11 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
