280C Compressor Kit (12V, 30% Duty, Sealed)

$ 241.95 241.95000000000002 USD $ 241.95

$ 241.95

    This combination does not exist.

    Contact Us



    Barcode: 818114002816
    Shipping Weight: 8 lb
    Internal Reference: VA-28021
    Brand: Viair
    Manufacture Part Number: 28021

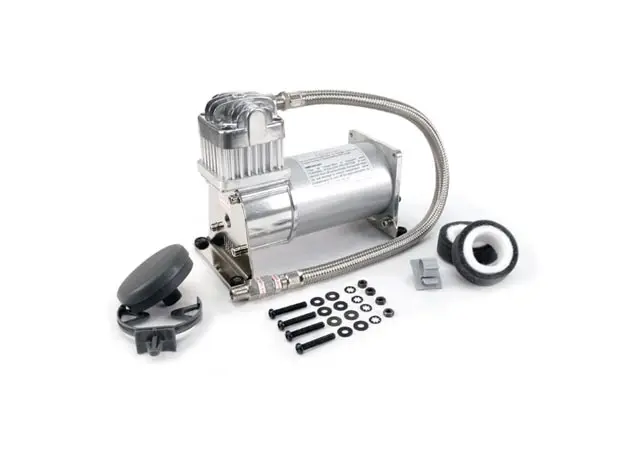

    280C Compressor Kit (12V, 30% Duty, Sealed)

    VIAIR's 280C compressor features a stainless steel braided leader hose, a 1/4” Male NPT connection with a swivel fitting hose end, a remote air filter, rubber isolated mounting feet as well as insulated electric terminals. This oil-less compressor is rated at 13.8 volt to a charging car battery. It is commonly used with air horns and can be paired with a 2.5 gallon air tanks or less.

    Features & Specifications

    Features
    		Specifications
    – Check Valve– 12-Volt
    – Vibration Isolators– Permanent Magnetic Motor
    – Mounting Hardware– Duty Cycle: 30% @ 100 PSI
    – Stainless Steel Braided Leader Hose– Max. Working Pressure: 150 PSI
    – Direct Air Filter Assembly– Max. Air Tank Size: 2.5 Gallon
    – (2) Replacement Air Filter Elements– Max. 12V Amp Draw: 19 Amps
    – Installation Instructions– Ingress Protection Rating: IP54
    –– Dimensions: 7.8″L x 3.95″W x 6.35″H
    –– Net Weight: 6.95 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.5910
    		0
    		45.010
    10
    		1.4912
    		1.040.213
    20
    		1.3313
    		2.032.114
    30
    		1.11
    		14
    		3.029.015
    40
    		1.0415
    		4.026.416
    50
    		0.9915
    		5.024.216
    60
    		0.9216
    		6.022.017
    70
    		0.8716
    		7.021.019
    80
    		0.8117
    		8.019.418
    90
    		0.7617
    		9.017.517
    100
    		0.7419
    		10.015.317
    110
    		0.7119



    120
    		0.6718



    130
    		0.6217



    140
    		0.5717



    150
    		0.5117



    * Supply Voltage: 13.8 Volts

    Fill Rates

    1.0 Gallon TankFill Rate
    0 to 105 PSI1 min. 10 sec. (± 05 sec.)
    85 to 105 PSI20 sec. (± 03 sec.)
    0 to 145 PSI1 min. 40 sec. (± 05 sec.)
    110 to 145 PSI35 sec. (± 03 sec.)
    2.5 Gallon TankFill Rate
    0 to 105 PSI2 min. 35 sec. (± 10 sec.)
    85 to 105 PSI44 sec. (± 05 sec.)
    0 to 145 PSI4 min. 30 sec. (± 10 sec.)
    110 to 145 PSI1 min. 36 sec. (± 05 sec.)
