200PSI High Pressure 2on2 (07-11 Jeep JK)

https://universalair-uas.odoo.com/web/image/product.template/303/image_1920?unique=d3c1cef
(0 review)

200 PSI High Pressure 2 On 2's, JK (2007 ~ 2011) Two 380C's On 2.0 Gal. Tank, w/Crossmember Bracket

$ 909.95 909.95 USD $ 909.95

$ 909.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003158
    Shipping Weight: 46 lb
    Internal Reference: VA-30005
    Brand: Viair
    Manufacture Part Number: 30005

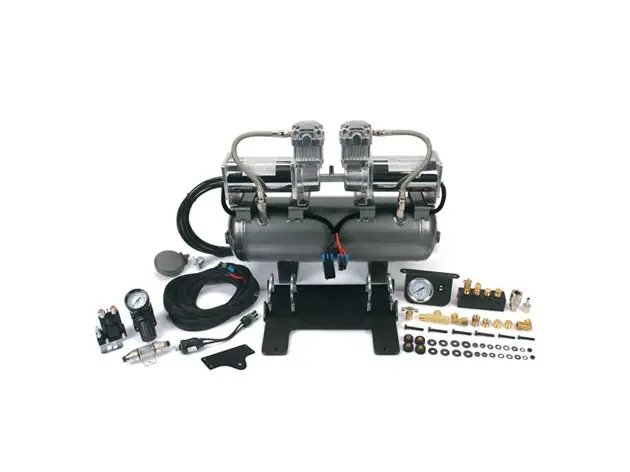

    200 PSI High Pressure 2 On 2's, JK (2007 ~ 2011) Two 380C's On 2.0 Gal. Tank, w/Crossmember Bracket

    Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high pressure onboard air system that provides 200 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket – 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward. Note: 2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.

    Note: 2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.

    Specifications

    Specifications
    		Pre-Installed
    		Included-in-Kit
    – 12-Volt– 2.0 Gallon 5-Port Air Tank– Crossmember Mounting Bracket
    – Permanent Magnetic Motor– (2) 380C Air Compressors w/Thermal Overload Protectors– 60-amp Fuse & Fuse Holder
    – Duty Cycle: 100% @ 100 PSI
    – Duty Cycle: 55% @ 200 PSI    		– (2) 1/4” Stainless Steel Braided Leader Hoses– 80-amp Relay
    – Max. Working Pressure: 200 PSI– (2) 1/4” JIC Fittings on Leader Hoses– (2) 1/4” BSP Adapters for Air Lockers
    – Max. Amp Draw: 44 Amps– 1/4” NPT Swivel to 1/4” NPT Swivel– T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M
    – Ingress Protection Rating: IP67– T-Fitting (Remote Mount Filter)– 1/8″ to 1/4″ NPT Reducer
    – Dimensions: 18.5″L x 5.9″W x 13.5″H– 1/4” NPT Drain Cock– Wiring Harness with Delphi Connectors
    – Net Weight: 30 lbs.– Sealed Pressure Switch with Delphi Connectors (165 PSI On, 200 PSI Off)– (2) Delphi Connector Plug Kits

    		(2) Loomed Compressor Wires Terminated
    with Delphi Connectors    		– Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket

    		– Inline Fuse Holder with Fuse– Air Filter Housing with Installed Element

    		– 1/4” NPT Safety Valve– (2) Replacement Air Filter Elements

    		 (4) 1/4” NPT M Recessed Plugs– Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket


    		– Air Filter Housing with Installed Element


    		– (2) Replacement Air Filter Elements


    		– Dash Panel Air Pressure Gauge (0-200 PSI Illuminated)


    		– Air Pressure Regulator


    		– 15ft. DOT Air Line

    Performance Data

    PSICFMABARLPMA
    0
    		2.5428
    		0
    		72.028
    10
    		2.4229
    		1.067.030
    20
    		2.3031
    		2.061.733
    30
    		2.1733
    		3.057.534
    40
    		2.0734
    		4.053.536
    50
    		1.95
    		35
    		5.049.837
    60
    		1.8736
    		6.046.439
    70
    		1.7837
    		7.043.341
    80
    		1.7038
    		8.040.343
    90
    		1.6139
    		9.037.244
    100
    		1.5441
    		10.034.542
    110
    		1.4642
    		11.031.841
    120
    		1.4043
    		12.029.240
    130
    		1.3244
    		13.026.638
    140
    		1.2543
    		14.023.737
    150
    		1.1942



    160
    		1.1241



    170
    		1.0640



    180
    		0.9939



    190
    		0.9338



    200
    		0.8637



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 200 PSI2 min. 35 sec. (± 10 sec.)
    165 to 200 PSI40 sec. (± 05 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 00 sec. (± 15 sec.)
    15 to 30 PSI2 min. 30 sec. (± 10 sec.)
    40″ x 15.5″Fill Rate
    0 to 30 PSI5 min. 25 sec. (± 15 sec.)
    15 to 30 PSI2 min. 40 sec. (± 10 sec.)






    VIAIR Jeep JK 2007-2011 2on2 Bolt-On Platform Installation
