150 PSI High Speed 2on2 - Universal

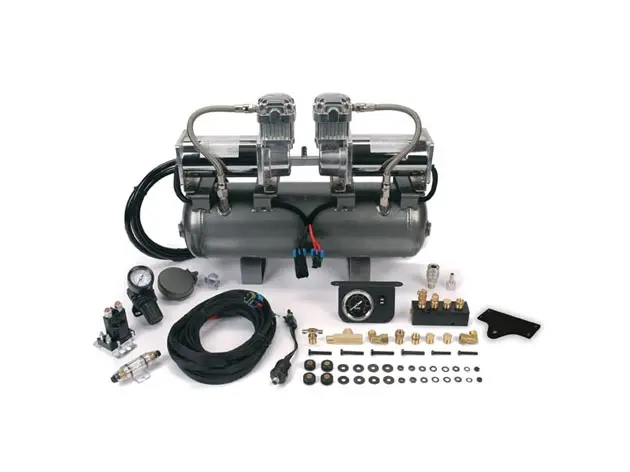

150 PSI High Speed 2 On 2's (Universal) Two 400C's On 2.0 Gal. Tank, No Crossmember Bracket

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. 2ON2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.

Specifications

Specifications	Pre-Installed	Included in Kit
– 12-Volt	– 2.0 Gallon 5-Port Air Tank	– 60-amp Fuse & Fuse Holder
– Permanent Magnetic Motor	– (2) 400C Air Compressors w/Thermal Overload Protectors	– 80-amp Relay
– Duty Cycle: 33% @ 100 PSI	– (2) 1/4” Stainless Steel Braided Leader Hoses	– (2) 1/4” BSP Adapters for Air Lockers
– Duty Cycle: 33% @ 100 PSI	– (2) 1/4” JIC Fittings on Leader Hoses	– T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M
– Max. Working Pressure: 150 PSI	– 1/4” NPT Swivel to 1/4” NPT Swivel	– 1/8″ to 1/4″ NPT Reducer
– Max. Amp Draw: 59 Amps	– T-Fitting (Remote Mount Filter)	– Wiring Harness with Delphi Connectors
– Ingress Protection Rating: IP67	– 1/4” NPT Drain Cock	– (2) Delphi Connector Plug Kits
– Dimensions: 18.5″L x 5.9″W x 13.5″H	– Sealed Pressure Switch with Delphi Connectors (110 PSI On, 145 PSI Off)	– Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
– Net Weight: 30 lbs.	(2) Loomed Compressor Wires Terminated with Delphi Connectors	– Air Filter Housing with Installed Element
	– Inline Fuse Holder with Fuse	– (2) Replacement Air Filter Elements
	– 1/4” NPT Safety Valve	– Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
	– (4) 1/4” NPT M Recessed Plugs	– Air Pressure Regulator
		– 15ft. DOT Air Line

PSI	CFM	A	BAR	LPM	A
0	4.55	39	0	129.0	39
10	4.18	40	1.0	115.6	41
20	3.96	42	2.0	106.5	45
30	3.74	45	3.0	96.6	47
40	3.50	46	4.0	86.4	50
50	3.25	48	5.0	78.4	53
60	3.00	50	6.0	70.8	58
70	2.83	52	7.0	64.0	57
80	2.60	55	8.0	57.5	54
90	2.46	59	9.0	50.6	52
100	2.28	57	10.0	43.7	50
110	2.12	55
120	1.97	53
130	1.80	52
140	1.60	51
150	1.48	49

* Supply Voltage: 13.8 Volts

2.0 Gallon Tank	Fill Rate
0 to 145 PSI	1 min. 00 sec. (± 05 sec.)
110 to 145 PSI	20 sec.(± 03 sec.)
37″ x 12.5″	Fill Rate
0 to 30 PSI	3 min. 25 sec. (± 10 sec.)
15 to 30 PSI	1 min. 40 sec. (± 05 sec.)
40″ x 15.5″	Fill Rate
0 to 30 PSI	3 min. 35 sec. (± 10 sec.)
15 to 30 PSI	1 min. 45 sec. (± 05 sec.)

User Manual

Wiring Diagram

Dimensional Drawing
