200 PSI High Pressure 2 On 2's, (Universal) Two 380C's On 2.0 Gal. Tank, No Crossmember Bracket

$ 839.95 839.95 USD $ 839.95

$ 839.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003189
    Shipping Weight: 42 lb
    Internal Reference: VA-30018
    Brand: Viair
    Manufacture Part Number: 30018

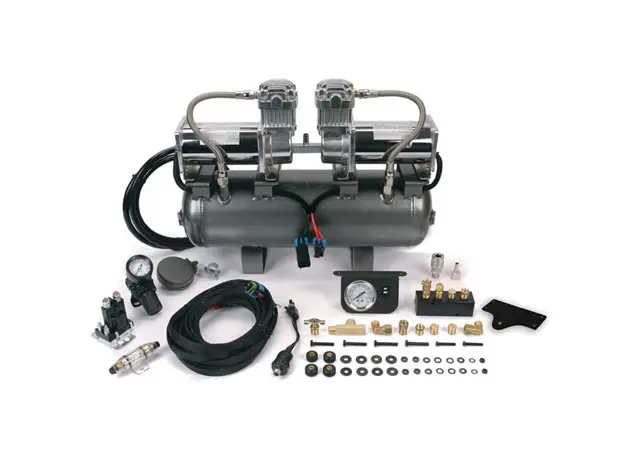

    200 PSI High Pressure 2 On 2's, (Universal) Two 380C's On 2.0 Gal. Tank, No Crossmember Bracket

    Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high pressure onboard air system that provides 200 PSI maximum pressure. 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward. Note: 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.

    Note: 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.

    Specifications

    Specifications
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI
    – Duty Cycle: 55% @ 200 PSI
    – Max. Working Pressure: 200 PSI
    – Max. Amp Draw: 44 Amps
    – Ingress Protection Rating: IP67
    – Dimensions: 18.5″L x 5.9″W x 13.5″H
    – Net Weight: 30 lbs.
    Pre-Installed
    		Included-in-Kit
    – 2.0 Gallon 5-Port Air Tank– 60-amp Fuse & Fuse Holder
    – (2) 380C Air Compressors w/Thermal Overload Protectors– 80-amp Relay
    – (2) 1/4” Stainless Steel Braided Leader Hoses– (2) 1/4” BSP Adapters for Air Lockers
    – (2) 1/4” JIC Fittings on Leader Hoses– T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M
    – 1/4” NPT Swivel to 1/4” NPT Swivel– 1/8″ to 1/4″ NPT Reducer
    – T-Fitting (Remote Mount Filter)– Wiring Harness with Delphi Connectors
    – T-Fitting (Remote Mount Filter)– (2) Delphi Connector Plug Kits
    – 1/4” NPT Drain Cock– Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
    – Sealed Pressure Switch with Delphi Connectors
    (165 PSI On, 200 PSI Off)    		– Air Filter Housing with Installed Element
    (2) Loomed Compressor Wires Terminated
    with Delphi Connectors    		– (2) Replacement Air Filter Elements
    – Inline Fuse Holder with Fuse– Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
    – 1/4” NPT Safety Valve– Air Pressure Regulator
    – (4) 1/4” NPT M Recessed Plugs– 15ft. DOT Air Line

    Performance Data

    PSICFMABARLPMA
    0
    		2.5428
    		0
    		72.028
    10
    		2.4229
    		1.067.030
    20
    		2.3031
    		2.061.733
    30
    		2.1733
    		3.057.534
    40
    		2.0734
    		4.053.536
    50
    		1.9535
    		5.049.837
    60
    		1.8736
    		6.046.439
    70
    		1.7837
    		7.043.341
    80
    		1.7038
    		8.040.343
    90
    		1.6139
    		9.037.244
    100
    		1.5441
    		10.034.542
    110
    		1.4642
    		11.031.841
    120
    		1.4043
    		12.029.240
    130
    		1.3244
    		13.026.638
    140
    		1.2543
    		14.023.737
    150
    		1.1942



    160
    		1.1241



    170
    		1.0640



    180
    		0.9939



    190
    		0.9338



    200
    		0.8637



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 200 PSI2 min. 35 sec. (± 10 sec.)
    165 to 200 PSI40 sec. (± 05 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 00 sec. (± 15 sec.)
    15 to 30 PSI2 min. 30 sec. (± 10 sec.)
    40″ x 15.5″Fill Rate
    0 to 30 PSI5 min. 25 sec. (± 15 sec.)
    15 to 30 PSI2 min. 40 sec. (± 10 sec.)
