300P Portable Compressor Kit

https://universalair-uas.odoo.com/web/image/product.template/429/image_1920?unique=529793e
(0 review)

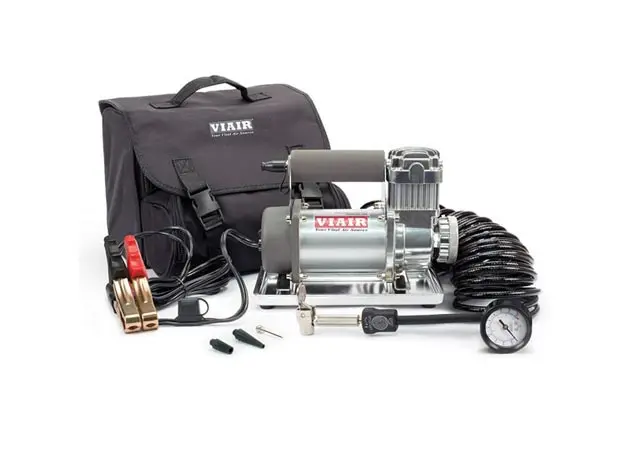

300P Portable Compressor Kit (12V, 33% Duty, 150 PSI, 30 Min. @ 30 PSI)

$ 251.95 251.95000000000002 USD $ 251.95

$ 251.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003004
    Shipping Weight: 12 lb
    Internal Reference: VA-30033
    Brand: Viair
    Manufacture Part Number: 30033

    300P Portable Compressor Kit (12V, 33% Duty, 150 PSI, 30 Min. @ 30 PSI)

    300P is a large portable compressor kit that is capable of inflating up to 33-inch tires easily by simply clamping the power leads to your battery, connecting the tire chuck to the valve stem and turning the unit on. Tire pressure can be checked using the 5-in-1 Inflator/Deflator inline pressure gauge.

    Please Note: The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 300P does not work with Presta bicycle valves.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – 5-in-1 Inflator/Deflator Air Hose with Inline 100 PSI Gauge– Permanent Magnetic Motor
    – Aluminum Sand Tray with Vibration Isolators– Duty Cycle: 33% @ 100 PSI
    – Deluxe Dual Compartment Carry Bag– Max. Working Pressure: 150 PSI
    – 40-amp Inline Fuse Holder– Max. Amp Draw: 30 Amps
    – Dual Battery Clamps– Ingress Protection Rating: IP54
     – 3 pc. Inflation Tips Kit– Dimensions: 9″L x 4.9″W x 7.5″H

    		– Net Weight: 8.70 lbs.

    		– Power Cord Length: 8 ft.

    		– Air Hose Length: 25 ft.

    Performance Data

    PSICFMABARLPMA
    0
    		2.3017
    		0
    		65.017
    10
    		1.9421
    		1.052.622
    20
    		1.7623
    		2.046.324
    30
    		1.6224
    		3.040.526
    40
    		1.4825
    		4.035.727
    50
    		1.3427
    		5.031.027
    60
    		1.2427
    		6.026.628
    70
    		1.1327
    		7.023.629
    80
    		0.9928
    		8.019.130
    90
    		0.9228
    		9.015.829
    100
    		0.8529
    		10.014.028
    110
    		0.7430



    120
    		0.6330



    130
    		0.56
    		29



    140
    		0.5328



    150
    		0.4627



    * Supply Voltage: 13.8 Volts

    Fill Rates

    31″ x 10.5″Fill Rate
    0 to 30 PSI3 min. 25 sec. (± 10 sec.)
    15 to 30 PSI2 min. 00 sec. (± 05 sec.)
    33″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 00 sec. (± 10 sec.)
    15 to 30 PSI2 min. 45 sec.(± 05 sec.)
