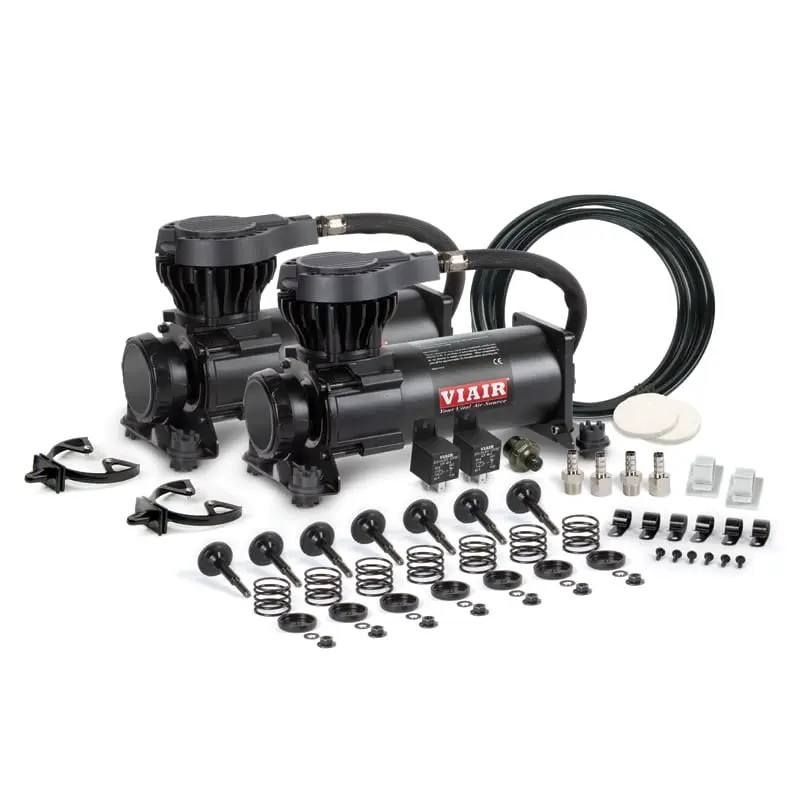

310 SS Dual Stealth Black Performance Value Pack

https://www.universalair.com/web/image/product.template/4248/image_1920?unique=5d80584
(0 review)

50% quieter, 200 psi, 2.05 CFM, CE, 100% Duty Cycle, P/N 31032

$ 633.95 633.95 USD $ 633.95

$ 633.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003127
    Shipping Weight: 24 lb
    Internal Reference: VA-31032
    Brand: Viair
    Manufacture Part Number: 31032

    BUILT-IN MUFFLER
    Solid metal  assembly to reduce noise levels unto 50%.*

    REDESIGNED HEAD
    Helps compressors run quieter and cooler.

    UPGRADED MOUNTS
    Equipped with newly designed spring-loaded vibration isolators mounts for added dampening.

    VIAIR’s all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.


    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    – Thermal Overload Protector
    – Heavy Duty Pressure Switch
    (165 PSI on, 200 PSI off)
    – Black Sleeved
    Stainless Steel Braided Leader Hoses
    – Inline Check Valve
    – 40-Amp 12v Relays
    – Spring Loaded Vibration Isolating Feet
    – Mounting Hardware
    – Air Line for Remote Mount Air Filter
    – Remote Mount 6-Stage
    Air Filter/Muffler Assemblies
    – (2) Replacement Air Filter Elements
    – Installation Instructions
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI
    – Duty Cycle: 50% @ 200 PSI
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Max. 12V Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.7″L x 4.4″W x 7.3″H
    – Net Weight: 19.5lbs.
    – 2.5 Gallon Tank (P/N 91028)
    – All Pressure Switches
    – All Pressure Switches w/ Relays
    – All Sealed Pressure Switches

    * For 12V Only.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    02.0525058.025
    101.86271.051.729
    201.80292.049.031
    301.73313.045.732
    401.64324.042.733
    501.57325.041.034
    601.49336.038.335
    701.44347.036.335
    801.39348.034.735
    901.32359.033.035
    1001.283510.031.735
    1101.263511.030.336
    1201.203512.028.336
    1301.173513.026.736
    1401.153514.025.036
    1501.0936
    1601.0737
    1701.0236
    1800.9836
    1900.9436
    2000.9136

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI3 min. 40 sec. (± 10 sec.)
    165 to 200 PSI55 sec. (± 10 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI7 min. 10 sec. (± 15 sec.)
    165 to 200 PSI1 min. 40 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.

    ** Compared to VIAIR 350C/380C compressors noise levels.
