325C Compressor Kit

https://universalair-uas.odoo.com/web/image/product.template/434/image_1920?unique=529793e
(0 review)

325C Silver Compressor Kit (12V, 33% Duty, Sealed)

$ 301.50 301.5 USD $ 301.50

$ 301.50

    This combination does not exist.

    Contact Us



    Barcode: 818114003202
    Shipping Weight: 9 lb
    Internal Reference: VA-32530
    Brand: Viair
    Manufacture Part Number: 32530

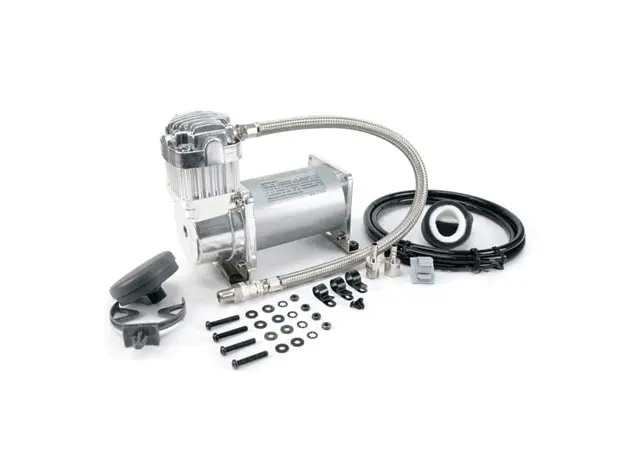

    325C Silver Compressor Kit (12V, 33% Duty, Sealed)

    The VIAIR 325C compressor is a powerful 12 volt air compressor commonly used for load levelling and entry level air suspension applications. This unit features a stainless steel braided leader hose with a check valve, swivel fitting and a 1/4" Male NPT hose end. It also comes with an air filter, vibration isolators, hardware and insulated wiring for simple installation. The 325C performance data is rated at 13.8 volts with a charging car battery and is n oil-less air compressor.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt / 24-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 33% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 21 Amps
    – Remote Mount Air Filter Assembly– Max. 24V Amp Draw: 13 Amps
    – (2) Replacement Air Filter Elements– 1/4″ NPT Intake Port
    – Installation Instructions– Ingress Protection Rating: IP67

    		– Dimensions: 8″L x 4″W x 6.75″H

    		– Net Weight: 7.5 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.59140
    		45.014
    10
    		1.4016
    		1.037.616
    20
    		1.2416
    		2.034.118
    30
    		1.2018
    		3.032.318
    40
    		1.1718
    		4.029.120
    50
    		1.08195.026.021
    60
    		1.0120
    		6.023.721
    70
    		0.93217.021.521
    80
    		0.87218.019.721
    90
    		0.82219.018.021
    100
    		0.772110.016.521
    110
    		0.7221


    120
    		0.6821


    130
    		0.6421


    140
    		0.6021


    150
    		0.5721


    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    PSICFMABARLPMA
    0
    		1.807
    		0
    		51.07
    10
    		1.688
    		1.044.18
    20
    		1.419
    		2.038.710
    30
    		1.36103.036.510
    40
    		1.31104.034.311
    50
    		1.25105.032.111
    60
    		1.20116.030.011
    70
    		1.15117.028.012
    80
    		1.09118.026.413
    90
    		1.04119.024.612
    100
    		0.991210.022.512
    110
    		0.9513



    120
    		0.9213



    130
    		0.8712


    140
    		0.8112


    150
    		0.7812


    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI2 min. 35 sec. (± 10 sec.)
    85 to 105 PSI40 sec. (± 05 sec.)
    0 to 145 PSI4 min. 15 sec. (± 10 sec.)
    110 to 145 PSI1 min. 25 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI5 min. 15 sec. (± 10 sec.)
    85 to 105 PSI1 min. 25 sec. (± 05 sec.)
    0 to 145 PSI8 min. 45 sec. (± 15 sec.)
    110 to 145 PSI2 min. 55 sec. (± 10 sec.)

    24-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI2 min. 25 sec. (± 10 sec.)
    85 to 105 PSI35 sec. (± 05 sec.)
    0 to 145 PSI3 min. 30 sec. (± 10 sec.)
    110 to 145 PSI1 min. 10 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI4 min. 45 sec. (± 10 sec.)
    85 to 105 PSI1 min. 05 sec. (± 05 sec.)
    0 to 145 PSI7 min. 25 sec. (± 15 sec.)
    110 to 145 PSI2 min. 25 sec. (± 10 sec.)
