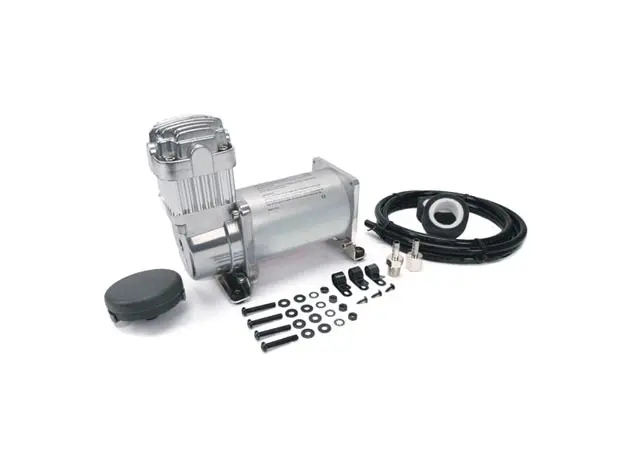

325C Silver Compressor Kit

https://universalair-uas.odoo.com/web/image/product.template/435/image_1920?unique=529793e
(0 review)

325C Silver Compressor (12V, 33% Duty, Sealed, w/o Leader Hose, w/o Check Valve)

$ 282.95 282.95 USD $ 282.95

$ 282.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003240
    Shipping Weight: 9 lb
    Internal Reference: VA-32534
    Brand: Viair
    Manufacture Part Number: 32534

    325C Silver Compressor (12V, 33% Duty, Sealed, w/o Leader Hose, w/o Check Valve)

    This VIAIR 325C compressor is a powerful 12 volt air compressor commonly used for load levelling and entry level air suspension applications. This unit comes with an air filter, vibration isolators, hardware and insulated wiring for simple installation. The 325C performance data is rated at 13.8 volts with a charging car battery and is an oil-less air compressor.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Mounting Hardware– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 33% @ 100 PSI
    – Air Line for Remote Mount Air Filter– Max. Working Pressure: 150 PSI
    – Remote Mount Air Filter Assembly– Max. Air Tank Size: 5.0 Gallon
    – (2) Replacement Air Filter Elements– Max. 12V Amp Draw: 21 Amps
    – Installation Instructions– 1/4″ NPT Intake Port

    		– Ingress Protection Rating: IP67

    		– Dimensions: 8″L x 4″W x 6.75″H

    		– Net Weight: 7.5 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.5914
    		0
    		45.014
    10
    		1.4016
    		1.037.616
    20
    		1.2416
    		2.034.118
    30
    		1.2018
    		3.032.318
    40
    		1.1718
    		4.029.120
    50
    		1.0819
    		5.026.021
    60
    		0.0120
    		6.023.721
    70
    		0.93217.021.521
    80
    		0.87218.019.721
    90
    		0.82219.018.021
    100
    		0.772110.016.521
    110
    		0.7221


    120
    		0.6821


    130
    		0.6621


    140
    		0.6021


    150
    		0.5721


    * Supply Voltage: 13.8 Volts

    12-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI2 min. 35 sec. (± 10 sec.)
    85 to 105 PSI40 sec. (± 05 sec.)
    0 to 145 PSI4 min. 15 sec. (± 10 sec.)
    110 to 145 PSI1 min. 25 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI5 min. 15 sec. (± 10 sec.)
    85 to 105 PSI1 min. 25 sec. (± 05 sec.)
    0 to 145 PSI8 min. 45 sec. (± 15 sec.)
    110 to 145 PSI2 min. 55 sec. (± 10 sec.)
