330C IG Series Compressor Kit - 24 Volt

https://universalair-uas.odoo.com/web/image/product.template/437/image_1920?unique=554c4ac
(0 review)

330C IG Series Compressor Kit (24V, Intercooler Head, 100% Duty, Sealed) (RoHS)

$ 361.95 361.95 USD $ 361.95

$ 361.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003387
    Shipping Weight: 10 lb
    Internal Reference: VA-33058
    Brand: Viair
    Manufacture Part Number: 33058

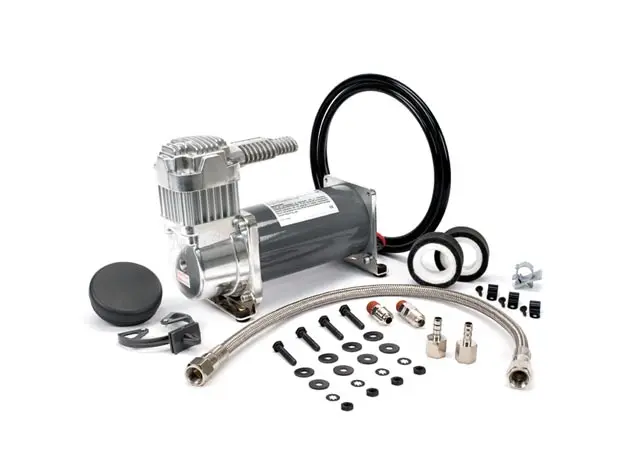

    330C IG Series Compressor Kit (24V, Intercooler Head, 100% Duty, Sealed) (RoHS)

    Industrial Grade (IG) compressors feature an innovative patents pending head design for better heat dissipation and are specifically designed to fill reservoir tanks. All IG compressors are certified CE spec. and feature outstanding sealing properties against the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts. This unit is oil-less and is rated at 28.0 volts to a charging car battery.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt / 24-Volt
    – Vibration Isolators– Permanent Magnetic Motor
    – Mounting Hardware– Duty Cycle: 100% @ 100 PSI
    – Heavy Duty 1/4″ NPT Check Valve– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided PTFE-Lined Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 16 Amps
    – Remote Mount Air Filter Assembly– Max. 24V Amp Draw: 9 Amps
    – (2) Replacement Air Filter Elements– Ingress Protection Rating: IP67
    – Installation Instructions– Max. Ambient Temp: +158°F

    		– Min. Ambient Temp: -40°F

    		– Dimensions: 9″L x 4″W x 6.75″H

    		– Net Weight: 8.25 lbs.

    12-Volt Compressor

    PSICFMABARLPMA
    0
    		1.067
    		0
    		30.07
    10
    		1.008
    		1.027.08
    20
    		0.909
    		2.024.210
    30
    		0.8510
    		3.021.110
    40
    		0.7610
    		4.019.711
    50
    		0.72115.018.312
    60
    		0.69116.017.712
    70
    		0.65127.017.013
    80
    		0.64128.015.514
    90
    		0.62129.014.415
    100
    		0.601310.013.016
    110
    		0.5713


    120
    		0.5314


    130
    		0.5115


    140
    		0.4816


    150
    		0.4415


    * Supply Voltage: 13.8 Volts

    24-Volt Compressor

    PSICFMABARLPMA
    0
    		1.164
    		0
    		33.04
    10
    		1.055
    		1.028.55
    20
    		0.955
    		2.025.16
    30
    		0.886
    		3.022.66
    40
    		0.816
    		4.021.27
    50
    		0.786
    		5.020.07
    60
    		0.747
    		6.019.07
    70
    		0.717
    		7.017.78
    80
    		0.697
    		8.016.59
    90
    		0.667
    		9.015.09
    100
    		0.638
    		10.013.58
    110
    		0.608



    120
    		0.579



    130
    		0.539



    140
    		0.497



    150
    		0.467



    * Supply Voltage: 28.0 Volts

    12-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI3 min. 40 sec. (± 10 sec.)
    85 to 105 PSI50 sec. (± 10 sec.)
    0 to 145 PSI5 min. 45 sec. (± 10 sec.)
    110 to 145 PSI1 min. 44 sec. (± 10 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI7 min. 24 sec. (± 15 sec.)
    85 to 105 PSI1 min. 40 sec. (± 05 sec.)
    0 to 145 PSI12 min. 12 sec. (± 15 sec.)
    110 to 145 PSI3 min. 30 sec. (± 10 sec.)

    24-Volt Compressor

    2.5 Gallon TankFill Rate
    0 to 105 PSI3 min. 09 sec. (± 10 sec.)
    85 to 105 PSI45 sec. (± 05 sec.)
    0 to 145 PSI5 min. 00 sec. (± 10 sec.)
    110 to 145 PSI1 min. 31 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI6 min. 20 sec. (± 10 sec.)
    85 to 105 PSI1 min. 26 sec. (± 05 sec.)
    0 to 145 PSI10 min. 00 sec. (± 15 sec.)
    110 to 145 PSI3 min. 12 sec. (± 10 sec.)
