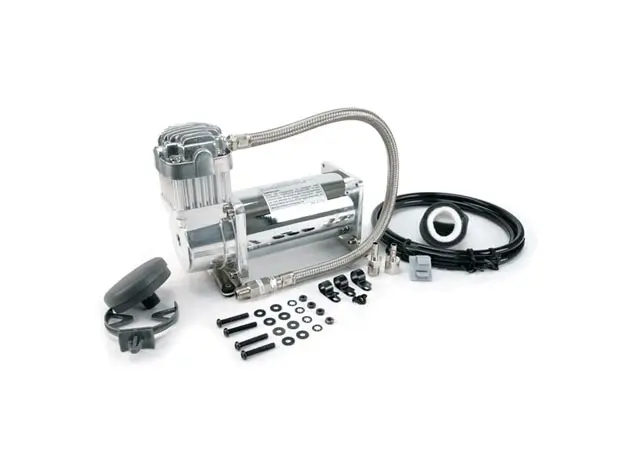

350C Chrome Compressor Kit (12V, 100% Duty, Sealed)

$ 275.95 275.95 USD $ 275.95

$ 275.95

    This combination does not exist.

    Contact Us



    Barcode: 818114003332
    Shipping Weight: 10 lb
    Internal Reference: VA-35033
    Brand: Viair
    Manufacture Part Number: 35033

    350C Chrome Compressor Kit (12V, 100% Duty, Sealed)

    The VIAIR 350C compressor is a powerful 12 volt air compressor commonly used a variety of pneumatic applications: air suspension, air horns, air brakes, air seats, air lockers, air shifting, and even air tools. This oil-less unit features a stainless steel braided leader hose with a check valve, swivel fitting and a 1/4" Male NPT hose end. It also comes with an air filter, vibration isolators, hardware and insulated wiring for simple installation. The 350C performance data is rated at 13.8 volts with a charging car battery and should be used with air tanks 5.0 gallons or less. (Chrome Model)

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 100% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 20 Amps
    – Remote Mount Air Filter Assembly– Ingress Protection Rating: IP67
    – (2) Replacement Air Filter Elements– Dimensions: 7.4″L x 4″W x 6.75″H
    – Installation Instructions– Net Weight: 8.55 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.5212
    		0
    		43.012
    10
    		1.4213
    		1.038.714
    20
    		1.3015
    		2.029.716
    30
    		1.0216
    		3.027.617
    40
    		0.9917
    		4.026.218
    50
    		0.9517
    		5.024.718
    60
    		0.9218
    		6.023.019
    70
    		0.8818
    		7.021.420
    80
    		0.8518
    		8.020.020
    90
    		0.7919
    		9.018.619
    100
    		0.7620
    		10.016.019
    110
    		0.7220



    120
    		0.6920



    130
    		0.6619



    140
    		0.5919



    150
    		0.5419



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 105 PSI2 min. 55 sec. (± 10 sec.)
    85 to 105 PSI45 sec. (± 05 sec.)
    0 to 145 PSI4 min. 20 sec. (± 10 sec.)
    110 to 145 PSI1 min. 35 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI5 min. 20 sec. (± 10 sec.)
    85 to 105 PSI1 min. 30 sec. (±; 05 sec.)
    0 to 145 PSI8 min. 50 sec. (± 15 sec.)
    110 to 145 PSI3 min. 15 sec. (± 10 sec.)
