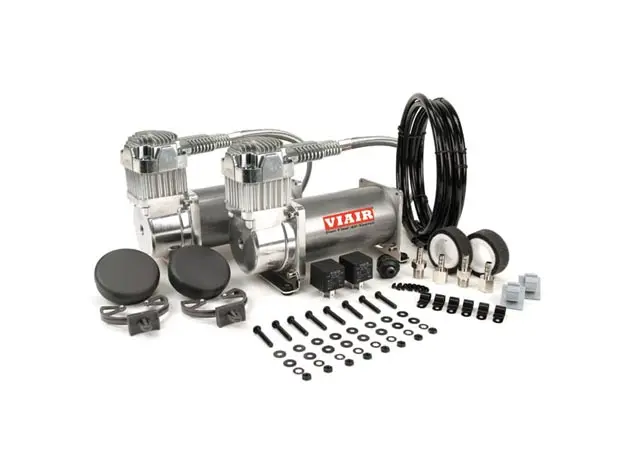

Dual Pewter 380C Value Pack (200 PSI, 380C/2, 165/200 P. Switch, 40 Amp Relay/2)
380C Dual Performance Value Packs include two 380C compressors, two
heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure
switch. Each Dual Performance Value Pack comes with remote mount filter
assemblies and mounting hardware. Dual Performance Value Packs are rated
to fill tank volumes up to 10 gallons.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Performance Data
| PSI | CFM | A | BAR | LPM | A |
0
| 2.54 | 28
| 0
| 72.0 | 28 |
10
| 2.42 | 29
| 1.0 | 67.0 | 30 |
20
| 2.30 | 31
| 2.0 | 61.7 | 33
|
30
| 2.17 | 33
| 3.0 | 57.5 | 34
|
40
| 2.07 | 34
| 4.0 | 53.5 | 36
|
50
| 1.95 | 35
| 5.0 | 49.8 | 37
|
60
| 1.87 | 36
| 6.0 | 46.4 | 39
|
70
| 1.78 | 37
| 7.0 | 43.3 | 41
|
80
| 1.70 | 38
| 8.0 | 40.3 | 43
|
90
| 1.61 | 39
| 9.0 | 37.2 | 44
|
100
| 1.54 | 41
| 10.0 | 34.5 | 42
|
110
| 1.46 | 42
| 11.0 | 31.8 | 41
|
120
| 1.40 | 43
| 12.0 | 29.2 | 40
|
130
| 1.32 | 44
| 13.0 | 26.6 | 38
|
140
| 1.25 | 43
| 14.0 | 23.7 | 37
|
150
| 1.19 | 42
|
|
|
|
160
| 1.12 | 41
|
|
|
|
170
| 1.06 | 40
|
|
|
|
180
| 0.99 | 39
|
|
|
|
190
| 0.93 | 38
|
|
|
|
200
| 0.86 | 37
|
|
|
|
* Supply Voltage: 13.8 Volts
