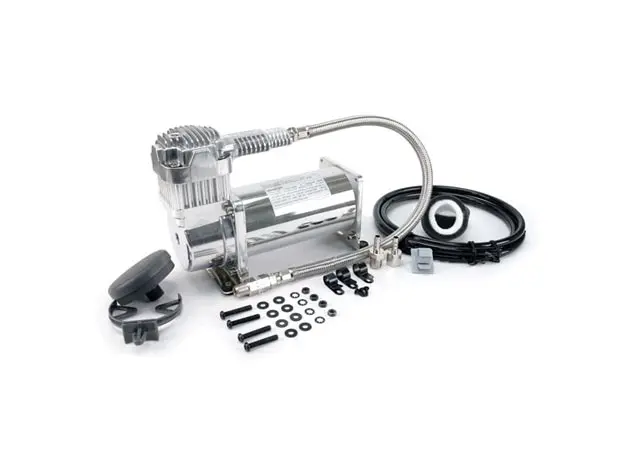

380C 200 PSI Chrome Compressor Kit (12V, 100% Duty @100 PSI, 55% Duty @200 PSI)
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes, with a 23 max amp draw at 13.8 volts. Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Performance Data
PSI | CFM | A | BAR | LPM | A |
0
| 1.58 | 12 | 0
| 44.7 | 12 |
10
| 1.45 | 13
| 1.0 | 38.1 | 13 |
20
| 1.22 | 14
| 2.0 | 33.3 | 15 |
30
| 1.17 | 15
| 3.0 | 30.6 | 16 |
40
| 1.09 | 16
| 4.0 | 29.1 | 17 |
50
| 1.06 | 17 | 5.0 | 27.1 | 18 |
60
| 1.02 | 17 | 6.0 | 25.3 | 19 |
70
| 0.97 | 18 | 7.0 | 24.0 | 20 |
80
| 0.92 | 18 | 8.0 | 22.4 | 21 |
90
| 0.88 | 19 | 9.0 | 21.0 | 23 |
100
| 0.85 | 20 | 10.0 | 19.5 | 21 |
110
| 0.81 | 21 | 11.0 | 18.2 | 20 |
120
| 0.78 | 22 | 12.0 | 16.7 | 19 |
130
| 0.74 | 23 | 13.0 | 15.2 | 19 |
140
| 0.71 | 21 | 14.0 | 13.5 | 18
|
150
| 0.67 | 20 |
|
|
|
160
| 0.64 | 20 |
|
|
|
170
| 0.60 | 19 |
|
|
|
180
| 0.57 | 19 |
|
|
|
190
| 0.53 | 19 |
|
|
|
200
| 0.49 | 18 |
|
|
|
* Supply Voltage: 13.8 Volts
