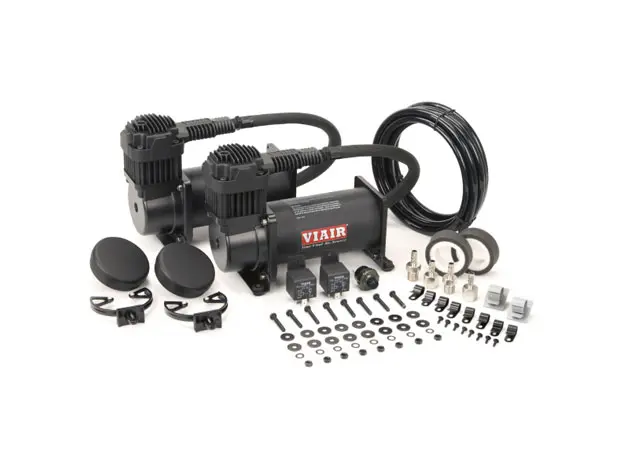

380C Dual Stealth Black Value Pack

https://www.universalair.com/web/image/product.template/447/image_1920?unique=17fa32c
(0 review)

200 PSI, 380C/2, 165/200 P. Switch, 40 Amp Relay/2

357.95 357.95 USD 357.95

357.95

    This combination does not exist.


    Barcode: 818114003868
    Shipping Weight: 19.75 lb
    Internal Reference: VA-38036
    Brand: Viair
    Manufacture Part Number: 38036

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    MINI WORKHORSE
    Capable of providing a maximum of 200 PSI
    & a 100% duty cycle.

    COMPACT
    Perfect option for simple or compact air suspension setups.

    – (2) 380C Stealth Black Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
    – Net Weight: 17.50 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    02.5428072.028
    102.42291.067.030
    202.30312.061.733
    302.17333.057.534
    402.07344.053.536
    501.95355.049.837
    601.87366.046.439
    701.78377.043.341
    801.70388.040.343
    901.61399.037.244
    1001.544110.034.542
    1101.464211.031.841
    1201.404312.029.240
    1301.324413.026.638
    1401.254314.023.737
    1501.1942
    1601.1241
    1701.0640
    1800.9939
    1900.9338
    2000.8637

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI3 min. 13 sec. (± 10 sec.)
    165 to 200 PSI53 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI7 min. 11 sec. (± 15 sec.)
    165 to 200 PSI2 min. 06 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
