380C Dual Stealth Black Value Pack

https://universalair-uas.odoo.com/web/image/product.template/447/image_1920?unique=c1530b8
(0 review)

200 PSI, 380C/2, 165/200 P. Switch, 40 Amp Relay/2

$ 421.25 421.25 USD $ 421.25

$ 421.25

    This combination does not exist.

    Contact Us



    Barcode: 818114003868
    Shipping Weight: 19.75 lb
    Internal Reference: VA-38036
    Brand: Viair
    Manufacture Part Number: 38036

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    MINI WORKHORSE
    Capable of providing a maximum of 200 PSI
    & a 100% duty cycle.

    COMPACT
    Perfect option for simple or compact air suspension setups.

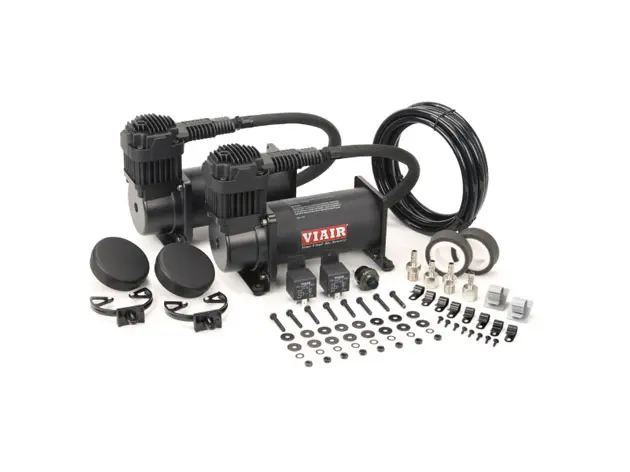

    The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – (2) 380C (Chrome, Pewter, or Stealth Black) Air Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) Remote Mount Brackets– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
    – (2) Sets of Remote Mount Fittings– Max. Working Pressure: 200 PSI
    – (2) Sets of Spare Air Filter Elements– Max. Air Tank Size: 10.0 Gallon
    – (2) Leader Hose Clips– Combined Max. Amp Draw: 44 Amps
    – (6) Air Line Clips with Included Hardware– Ingress Protection Rating: IP67
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
    – (2) 40-Amp Relays– Net Weight: 17.50 lbs.
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		2.5428
    		0
    		72.028
    102.4229
    		1.067.030
    202.3031
    		2.061.733
    302.1733
    		3.057.534
    402.0734
    		4.053.536
    501.9535
    		5.049.837
    601.8736
    		6.046.439
    701.7837
    		7.043.341
    801.7038
    		8.040.343
    901.6139
    		9.037.244
    1001.5441
    		10.034.542
    1101.4642
    		11.031.841
    1201.4043
    		12.029.240
    1301.3244
    		13.026.638
    1401.2543
    		14.023.737
    1501.1942



    1601.1241



    1701.0640



    1800.9939



    1900.9338



    200
    		0.8637



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI3 min. 13 sec. (± 10 sec.)
    165 to 200 PSI53 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI7 min. 11 sec. (± 15 sec.)
    165 to 200 PSI2 min. 06 sec. (± 10 sec.)
    – (2) 380C Stealth Black Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
    – Net Weight: 17.50 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    02.5428072.028
    102.42291.067.030
    202.30312.061.733
    302.17333.057.534
    402.07344.053.536
    501.95355.049.837
    601.87366.046.439
    701.78377.043.341
    801.70388.040.343
    901.61399.037.244
    1001.544110.034.542
    1101.464211.031.841
    1201.404312.029.240
    1301.324413.026.638
    1401.254314.023.737
    1501.1942
    1601.1241
    1701.0640
    1800.9939
    1900.9338
    2000.8637

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI3 min. 13 sec. (± 10 sec.)
    165 to 200 PSI53 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI7 min. 11 sec. (± 15 sec.)
    165 to 200 PSI2 min. 06 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
