1/4” NPT stainless steel braided leader hose
with an inline check valve.
Perfect option for simple or compact air suspension setups.

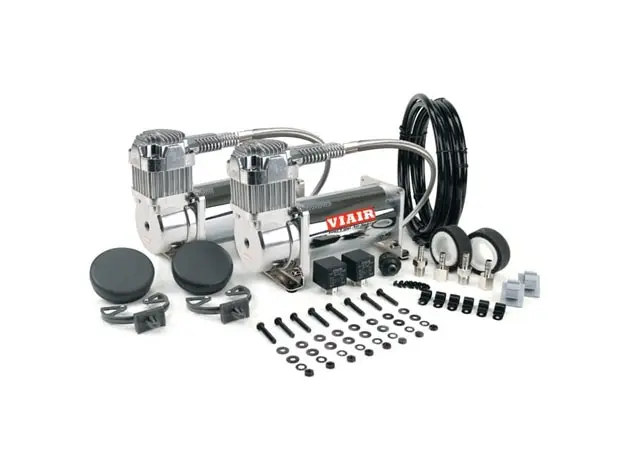

FEATURES
– (2) 400C Chrome Air Compressors w/Thermal Overload Protectors |
– (2) Air Filter Assemblies |
– (2) Remote Mount Brackets |
– (2) Sets of Remote Mount Fittings |
– (2) Sets of Spare Air Filter Elements |
– (2) Leader Hose Clips |
– (6) Air Line Clips with Included Hardware |
– (8) Sets of Nuts, Bolts, Washers and Lock Washers |
– (2) 40-Amp Relays |
– (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off) |
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
– Air Line (For Remote Mount Filter Installation) |
SPECIFICATIONS
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 33% @ 100 PSI |
– Max. Working Pressure: 150 PSI |
– Max. Air Tank Size: 10.0 Gallon |
– Combined Max. Amp Draw: 60-Amps |
– Ingress Protection Rating: IP67 |
– Max Ambient Temp: +158°F |
– Min Ambient Temp: -40°F |
– Dimensions: 9″L x 4″W x 6.75″H (Each Unit) |
– Net Weight: 17.30 lbs. |
PERFORMANCE DATA
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 4.55 | 39 | 0 | 129.0 | 39 |
10 | 4.18 | 40 | 1.0 | 115.6 | 41 |
20 | 3.96 | 42 | 2.0 | 106.5 | 45 |
30 | 3.74 | 45 | 3.0 | 96.6 | 47 |
40 | 3.50 | 46 | 4.0 | 86.4 | 50 |
50 | 3.25 | 48 | 5.0 | 78.4 | 53 |
60 | 3.00 | 50 | 6.0 | 70.8 | 58 |
70 | 2.83 | 52 | 7.0 | 64.0 | 57 |
80 | 2.60 | 55 | 8.0 | 57.5 | 54 |
90 | 2.46 | 59 | 9.0 | 50.6 | 52 |
100 | 2.28 | 57 | 10.0 | 43.7 | 50 |
110 | 2.12 | 55 | |||
120 | 1.97 | 53 | |||
130 | 1.80 | 52 | |||
140 | 1.60 | 51 | |||
150 | 1.48 | 49 |
* Supply Voltage: 13.8 Volts
FILL RATES
2.0 GALLON TANK | FILL RATE |
---|---|
0 to 145 PSI | 1 min. 00 sec. (± 05 sec.) |
110 to 145 PSI | 20 sec. (± 03 sec.) |
2.5 GALLON TANK | FILL RATE |
0 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
110 to 145 PSI | 25 sec. (± 03 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 145 PSI | 2 min. 30 sec. (± 10 sec.) |
110 to 145 PSI | 52 sec. (± 05 sec.) |
