400C Compressor Kit Single

https://www.universalair.com/web/image/product.template/483/image_1920?unique=d3c1cef
(0 review)

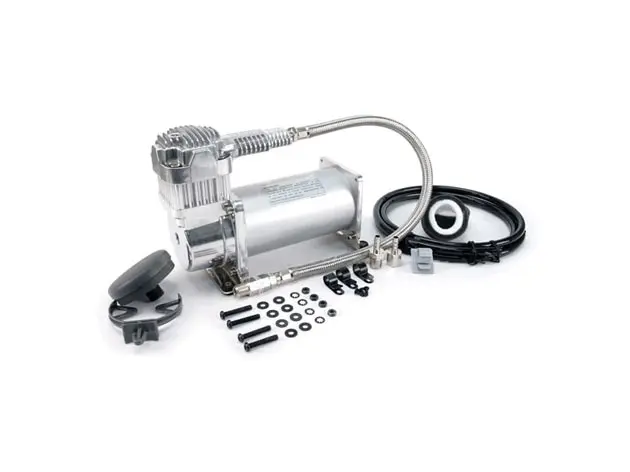

400C Compressor Kit (12V, 33% Duty, Sealed)

$ 279.95 279.95 USD $ 279.95

$ 279.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004001
    Shipping Weight: 10 lb
    Internal Reference: VA-40040
    Brand: Viair
    Manufacture Part Number: 40040

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    MINI WORKHORSE
    With a 2.62 CFM fill rate, this compressor will quickly fill your tank to max operating pressure of 150PSI.

    COMPACT
    Perfect option for simple or compact air suspension setups.

    If you’re looking for a Simple, Hard Working, and Compact compressor setup for your 150 PSI system, these are the go to.  Due to its max operating pressure of 150 PSI rating, with a low duty cycle, it’s able to hit its target faster.

    It's best served in an application where the tank pressure is lower.
    It's also recommended to be mindful of its light duty cycle.

    Additional Info to Download:
    Manual

    Dimensional Drawing

    Wiring Diagram​​​​​​

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Performance Data

    * Supply Voltage: 13.8 Volts

    Fill Rates

    * For 12V Only. ** For 24V Only.

    * Supply Voltage: 13.8 Volts

    12-VOLT COMPRESSOR
    2.5 GALLON TANKFILL RATE
    0 to 145 PSI2 min. 27 sec. (± 05 sec.)
    110 to 145 PSI55 sec. (± 03 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 105 PSI2 min. 55 sec. (± 10 sec.)
    85 to 105 PSI45 sec. (± 05 sec.)
    0 to 145 PSI4 min. 50 sec. (± 10 sec.)
    110 to 145 PSI1 min. 40 sec. (± 05 sec.)
