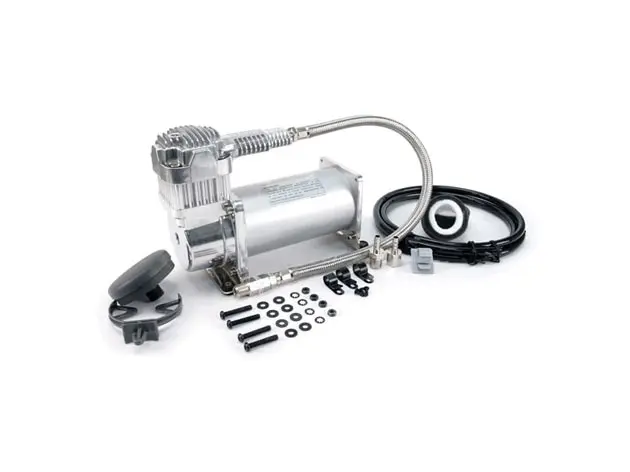

400C Compressor Kit Single

https://universalair-uas.odoo.com/web/image/product.template/483/image_1920?unique=850f9c5

400C Compressor Kit (12V, 33% Duty, Sealed)

$ 279.95 279.95 USD $ 279.95

$ 279.95

Not Available For Sale

    This combination does not exist.

    Contact Us



    400C Compressor Kit (12V, 33% Duty, Sealed)

    400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at zero PSI head pressure. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 33% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 28 Amps
    – Remote Mount Air Filter Assembly– Ingress Protection Rating: IP67
    – (2) Replacement Air Filter Elements– Dimensions: 9″L x 4″W x 6.75″H
    – Installation Instructions– Net Weight: 8.65 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		2.62160
    		74.016
    10
    		2.39181.065.020
    20
    		2.21202.060.023
    30
    		2.11223.056.025
    40
    		2.01244.053.027
    50
    		1.93255.049.028
    60
    		1.84266.046.028
    70
    		1.73277.042.028
    80
    		1.65278.038.028
    90
    		1.52279.035.027
    100
    		1.452710.031.027
    110
    		1.3527


    120
    		1.2627


    130
    		1.1927


    140
    		1.0827


    150
    		1.0126



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 27 sec. (± 05 sec.)
    85 to 105 PSI21 sec. (± 03 sec.)
    0 to 145 PSI2 min. 20 sec. (± 05 sec.)
    110 to 145 PSI48 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI2 min. 55 sec. (± 10 sec.)
    85 to 105 PSI45 sec. (± 05 sec.)
    0 to 145 PSI4 min. 50 sec. (± 10 sec.)
    110 to 145 PSI1 min. 40 sec. (± 05 sec.)
