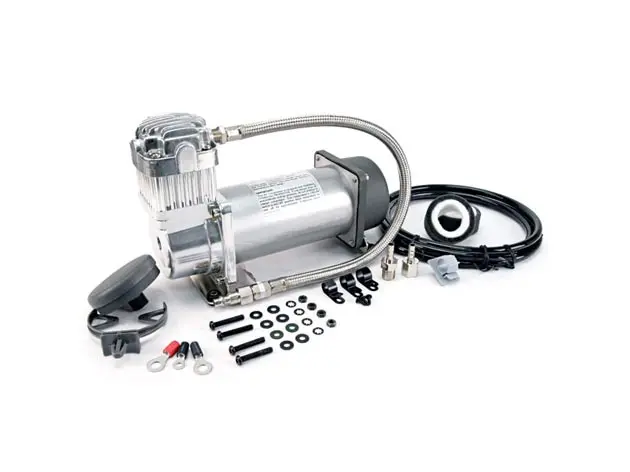

400H Hardmount Compressor Kit

400H Hardmount Compressor Kit (12V, 33% Duty, Sealed)

400H is a hardmount compressor that pumps a massive 2.30 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

Features & Specifications

Features	Specifications
– Thermal Overload Protector	– 12-Volt
– Check Valve	– Permanent Magnetic Motor
– Vibration Isolators	– Duty Cycle: 33% @ 100 PSI
– Mounting Hardware	– Max. Working Pressure: 150 PSI
– 1/4″ Quick Connect Stud	– Max. Amp Draw: 30 Amps
– Stainless Steel Braided Leader Hose	– Ingress Protection Rating: IP54
– Air Line for Remote Mount Air Filter	– Dimensions: 10.08″L x 3.94″W x 6.75″H
– Remote Mount Air Filter Assembly	– Net Weight: 8.95 lbs.
– (2) Replacement Air Filter Elements	–
– Installation Instructions	–

Performance Data

PSI	CFM	A	BAR	LPM	A
0	2.30	17	0	65.1	17
10	2.13	19	1.0	58.4	20
20	1.98	21	2.0	53.0	23
30	1.86	23	3.0	48.5	24
40	1.75	24	4.0	44.2	26
50	1.64	25	5.0	40.2	27
60	1.54	26	6.0	37.0	28
70	1.44	27	7.0	33.3	29
80	1.37	27	8.0	30.1	28
90	1.28	28	9.0	27.0	28
100	1.19	29	10.0	22.1	27
110	1.11	29
120	1.04	28
130	0.95	28
140	0.85	27
150	0.71	27

* Due to redundant restrictions added to apparatus for flow rate testing, actual flow rate at 0 psi may vary. Supply Voltage: 13.8 Volts

Fill Rates

33″ x 12.5″	Fill Rate
0 to 30 PSI	4 min. 20 sec. (± 10 sec.)
15 to 30 PSI	2 min. 05 sec. (± 05 sec.)
35″ x 12.5″	Fill Rate
0 to 30 PSI	5 min. 20 sec. (± 15 sec.)
15 to 30 PSI	2 min. 45 sec. (± 10 sec.)

User Manual

Wiring Diagram

Dimensional Drawing
