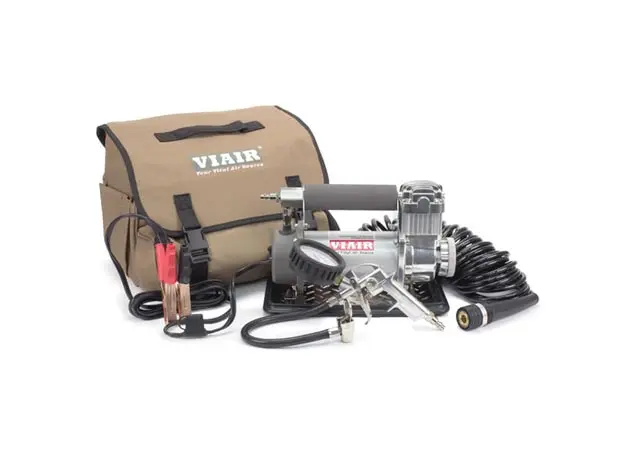

400P-A Automatic Portable Compressor Kit

https://www.universalair.com/web/image/product.template/489/image_1920?unique=d3c1cef
(0 review)

400P-Automatic Portable Compressor Kit (12V, 33% Duty, 40 Min. @ 30 PSI)

$ 369.95 369.95 USD $ 369.95

$ 369.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004056
    Shipping Weight: 16 lb
    Internal Reference: VA-40045
    Brand: Viair
    Manufacture Part Number: 40045

    V400P-Automatic Portable Compressor Kit (12V, 33% Duty, 40 Min. @ 30 PSI)

    400P-Automatic is VIAIR’s first Automatic shut-off function portable compressor. This 33% duty cycle unit is capable of pressures up to 150 PSI and can be operated for up to 40 minutes at a time before needing to be rested (at up to 40 PSI). The 400P-Automatic comes with a close-ended gas station-style air gun for added convenience. Portable compressors with automatic shutoff come into play when moving from tire to tire, and when checking tire pressure in the middle of a tire fill. A typical portable compressor must be turned off between tire fills, and anytime you want to check tire pressure. If you aren’t near the compressor, this can turn into running laps back and forth to the portable compressor to turn the unit on and off. Automatic portables do not work in this fashion and will save you time & effort to get tires inflated quickly.

    Please Note: The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves.

    Features & Specifications

    Features
    		Specifications
    – Gas Station-Style Tire Inflation Gun with 160 PSI Gauge– 12-Volt
    – Thermal Overload Protector– Permanent Magnetic Motor
    – Automatic Shut-Off Function– Duty Cycle: 33% @ 100 PSI
    – Quick Connect Air Hose with Heat Shield– Max. Working Pressure: 150 PSI
    – Vibration-Resistant Diamond-Plate Sand Tray– Max. Amp Draw: 30 Amps
    – Deluxe Dual Compartment Carry Bag– Ingress Protection Rating: IP54
    – 40-amp Inline Fuse Holder– Dimensions: 10.87″L x 5.83″W x 7.48″H
    – Dual Battery Clamps– Net Weight: 10.70 lbs.
     – 3 pc. Inflation Tips Kit– Power Cord Length: 8 ft.

    		– Air Hose Length: 30 ft.

    Performance Data

    PSICFMABARLPMA
    0
    		2.3017
    		0
    		65.117
    10
    		2.1319
    		1.058.420
    20
    		1.9821
    		2.053.023
    30
    		1.8623
    		3.048.524
    40
    		1.7524
    		4.044.226
    50
    		1.6425
    		5.040.227
    60
    		1.5426
    		6.037.028
    70
    		1.44277.033.329
    80
    		1.37278.030.128
    90
    		1.2828
    		9.027.028
    100
    		1.1929
    		10.022.127
    110
    		1.1129



    120
    		1.0428



    130
    		0.9528



    140
    		0.8527



    150
    		0.7127



    * Supply Voltage: 13.8 Volts

    Fill Rates

    31″ x 10.5″Fill Rate
    0 to 30 PSI3 min. 00 sec. (± 10 sec.)
    15 to 30 PSI1 min. 35 sec. (± 05 sec.)
    33″ x 12.5″Fill Rate
    0 to 30 PSI4 min. 20 sec. (± 10 sec.)
    15 to 30 PSI2 min. 05 sec. (± 05 sec.)
    35″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 20 sec. (± 15 sec.)
    15 to 30 PSI2 min. 45 sec. (± 10 sec.)
