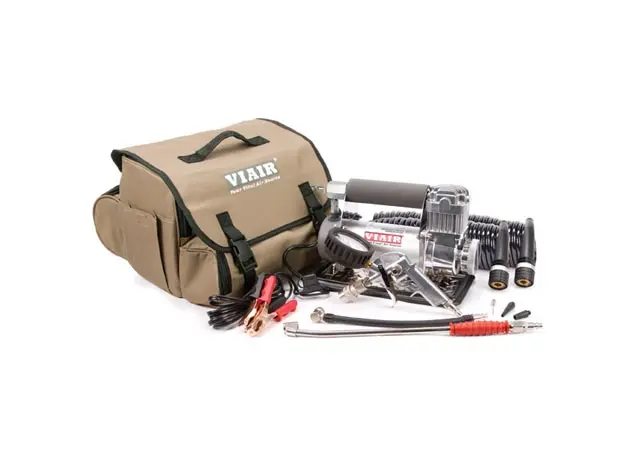

400P-RV Automatic Portable Compressor Kit (12V, 33% Duty, 40 Min. @ 30 PSI)
400P-RV Automatic offers automatic shut-off in a larger portable
compressor kit that can inflate 35-inch tires from 0 to 30 PSI in less
than 5 minutes. While the unit is intended for RV use, it can be used
for virtually any tire since it comes with more accessories for more
varied inflating situations than any other portable compressor kit on
the market today. Portable compressors with automatic shutoff come into
play when moving from tire to tire, and when checking tire pressure in
the middle of a tire fill. A typical portable compressor must be turned
off between tire fills, and anytime you want to check tire pressure. If
you aren’t near the compressor, this can turn into running laps back and
forth to the portable compressor to turn the unit on and off. Automatic
portables do not work in this fashion and will save you time &
effort to get tires inflated quickly.
Please Note: The air hose supplied with this kit
may become brittle from prolonged exposure to UV/sunlight. – Stow when
not in use. Never allow the hose to come into contact with the head of
the compressor during use (melting hazard). The use of the included air
hose is not recommended in sub zero or freezing conditions. The 400P-RV
does not work with Presta bicycle valves.Performance Data
| PSI | CFM | A | BAR | LPM | A |
0
| 2.30 | 17
| 0
| 65.1 | 17
|
10
| 2.13 | 19
| 1.0 | 58.4 | 20
|
20
| 1.98 | 21
| 2.0 | 53.0 | 23
|
30
| 1.86 | 23
| 3.0 | 48.5 | 24
|
40
| 1.75 | 24
| 4.0 | 44.2 | 26
|
50
| 1.64 | 25
| 5.0 | 40.2 | 27
|
60
| 1.54 | 26
| 6.0 | 37.0 | 28
|
70
| 1.44 | 27 | 7.0 | 33.3 | 29
|
80
| 1.37 | 27 | 8.0 | 30.1 | 28
|
90
| 1.28 | 28
| 9.0 | 27.0 | 28
|
100
| 1.19 | 29
| 10.0 | 22.1 | 27
|
110
| 1.11 | 29
|
|
|
|
120
| 1.04 | 28
|
|
|
|
130
| 0.95 | 28
|
|
|
|
140
| 0.85 | 27
|
|
|
|
150
| 0.71 | 27
|
|
|
|
* Supply Voltage: 13.8 Volts
