400C Dual Stealth Black Value Pack

https://universalair-uas.odoo.com/web/image/product.template/485/image_1920?unique=2f2db6b
(0 review)

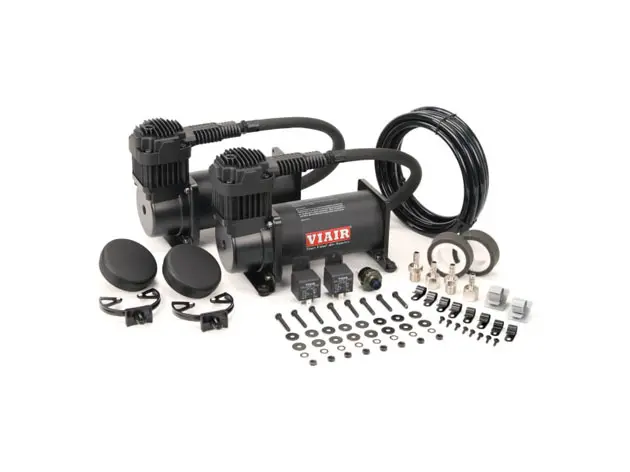

Dual Stealth Black 400C Value Pack (150 PSI, 400C/2, 110/145 P. Switch, 40 Amp Relay/2)

$ 410.75 410.75 USD $ 410.75

$ 410.75

    This combination does not exist.

    Contact Us



    Barcode: 818114004384
    Shipping Weight: 20 lb
    Internal Reference: VA-40048
    Brand: Viair
    Manufacture Part Number: 40048


    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.    ​
    MINI WORKHORSE
    With a combined 4.55 CFM, these compressors will quickly fill your tank to max operating pressure of 150PSI.
    COMPACT
    Perfect option for simple or compact air suspension setups.

    If you’re looking for a Simple, Hard Working, and Compact compressor setup for your 150 PSI system, these are the go to.  Due to its max operating pressure of 150 PSI rating, with a low duty cycle, it’s able to hit its target faster.

    Its best served in an application where the tank pressure is lower.

    The VIAIR 400C Dual Performance Value Pack is their Fastest Filling, highest CFM air compressor system.  Although, these compressors are rated to fill up multiple tanks, up to 10 Gallons.  Its recommended to be mindful of its light duty cycle.

    Additional Info to Download
    Manual

    Dimensional Drawing

    Wiring Diagram​​​​​​

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – (2) 400C Chrome Air Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) Remote Mount Brackets– Duty Cycle: 33% @ 100 PSI
    – (2) Sets of Remote Mount Fittings– Max. Working Pressure: 150 PSI
    – (2) Sets of Spare Air Filter Elements– Max. Air Tank Size: 10.0 Gallon
    – (2) Leader Hose Clips– Combined Max. Amp Draw: 60 Amps
    – (6) Air Line Clips with Included Hardware– Ingress Protection Rating: IP67
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
    – (2) 40-Amp Relays– Net Weight: 17.30 lbs.
    – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		4.5539
    		0
    		129.039
    10
    		4.1840
    		1.0115.641
    20
    		3.9642
    		2.0106.545
    30
    		3.7445
    		3.096.647
    40
    		3.5046
    		4.086.450
    50
    		3.2548
    		5.078.453
    60
    		3.0050
    		6.070.858
    70
    		2.83527.064.057
    80
    		2.60558.057.554
    90
    		2.46599.050.652
    100
    		2.285710.043.750
    110
    		2.1255


    120
    		1.9753


    130
    		1.8052


    140
    		1.6051


    150
    		1.4849



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI1 min. 00 sec. (± 05 sec.)
    110 to 145 PSI20 sec. (± 03 sec.)
    2.5 Gallon TankFill Rate
    0 to 145 PSI1 min. 15 sec. (± 05 sec.)
    110 to 145 PSI25 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 145 PSI2 min. 30 sec. (± 10 sec.)
    110 to 145 PSI52 sec. (± 05 sec.)


    – (2) 400C Chrome Air Compressors w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)


    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 33% @ 100 PSI
    – Max. Working Pressure: 150 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 60-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
    – Net Weight: 17.30 lbs.


    PSICFMABARLPMA
    04.55390129.039
    104.18401.0115.641
    203.96422.0106.545
    303.74453.096.647
    403.50464.086.450
    503.25485.078.453
    603.00506.070.858
    702.83527.064.057
    802.60558.057.554
    902.46599.050.652
    1002.285710.043.750
    1102.1255
    1201.9753
    1301.8052
    1401.6051
    1501.4849

    * Supply Voltage: 13.8 Volts

    2.0 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 00 sec. (± 05 sec.)
    110 to 145 PSI20 sec. (± 03 sec.)
    2.5 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 15 sec. (± 05 sec.)
    110 to 145 PSI25 sec. (± 03 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 145 PSI2 min. 30 sec. (± 10 sec.)
    110 to 145 PSI52 sec. (± 05 sec.)
