Heavy Duty Automatic Deployment Air System

https://universalair-uas.odoo.com/web/image/product.template/1936/image_1920?unique=4d9aacf
(0 review)

Heavy Duty ADA System, Universal-Mount, w/Inflation Kit

$ 549.95 549.95 USD $ 549.95

$ 549.95

    This combination does not exist.

    Contact Us



    Barcode: 818114001499
    Shipping Weight: 17 lb
    Internal Reference: VA-40049
    Brand: Viair
    Manufacture Part Number: 40049

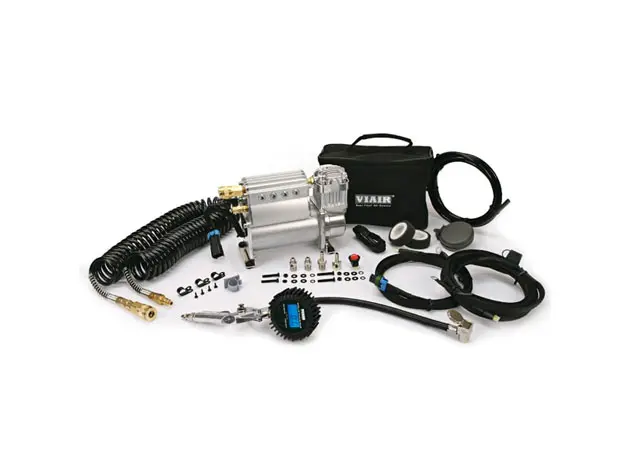

    Heavy Duty ADA System, Universal-Mount, w/Inflation Kit

    Using a 33% (Heavy Duty) duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

    Features & Specifications

    Features
    		Specifications
    – 400C Compressor w/Thermal Overload Protector– 12-Volt
    – Extruded Aluminum Air Tank (12-port)– Permanent Magnetic Motor
    – Toggle Switch– Duty Cycle: 33% @ 100 PSI
    – Air Line for Remote Mount Air Filter Installation– Max. Working Pressure: 150 PSI
    – (2) Remote Mount Air Filter Relocation Fittings– Max. Amp Draw: 28 Amps
    – 1/8” NPT Drain Cock– Ingress Protection Rating: IP67
    – 1/4” NPT Safety Valve– Dimensions: 9″L x 4″W x 6.75″H
    – (8) 1/4” NPT Hex Plug– Net Weight: 10 lbs.
    – 1/4” NPT Sealed Pressure Switch (85/105 PSI)–
    – (2) 1/4” NPT BSP Adapter–
    – 1/4” NPT Automatic Coupler–
    WIRING HARNESSDIGITAL TIRE INFLATION KIT
    – 30-amp Delphi Connector Set– 30’ Inflation Hose with Automatic Couplers
    – 60-amp Fuse Holder– Digital Tire Inflation Gun
    – 40-amp Fuse–
    – (2) 1/4” Ring Terminal
    – 5/16” Ring Terminal–
    – (3) Female Spade Terminal Connector–

    Performance Data

    PSICFMABARLPMA
    0
    		2.6215
    		0
    		74
    		16
    10
    		2.3918
    		1.065
    		20
    20
    		2.2120
    		2.060
    		23
    30
    		2.1122
    		3.056
    		25
    40
    		2.0124
    		4.053
    		27
    50
    		1.9325
    		5.049
    		28
    60
    		1.8426
    		6.046
    		28
    70
    		1.73277.042
    		28
    80
    		1.65278.038
    		28
    90
    		1.52279.035
    		27
    100
    		1.452710.031
    		27
    110
    		1.3527


    120
    		1.2627


    130
    		1.1927


    140
    		1.0827


    150
    		1.0126



    * Supply Voltage: 13.8 Volts

    Fill Rates

    31” x 10.5”Fill Rate
    0 to 30 PSI3 min. 00 sec. (± 10 sec.)
    15 to 30 PSI1 min. 35 sec. (± 05 sec.)
    33” x 12.5″Fill Rate
    0 to 30 PSI4 min. 20 sec. (± 10 sec.)
    15 to 30 PSI2 min. 05 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI5 min. 20 sec. (± 15 sec.)
    15 to 30 PSI2 min. 45 sec. (± 10 sec.)
