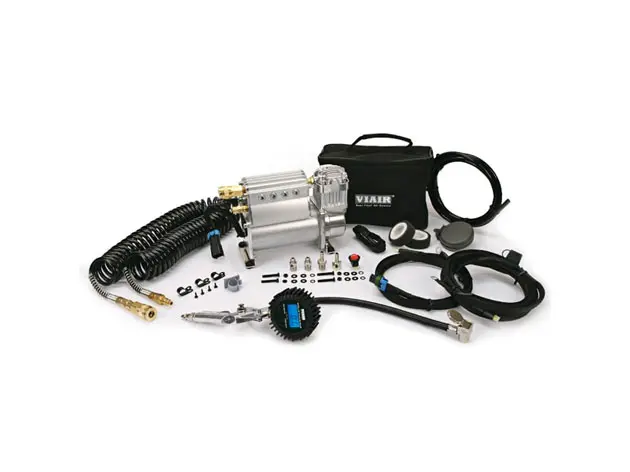

Heavy Duty Automatic Deployment Air System

(0 review)

Heavy Duty ADA System, Universal-Mount, w/Inflation Kit

$ 586.25 $ 586.25

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114001499
Shipping Weight: 17 lb
Internal Reference: VA-40049
Brand: Viair
Manufacture Part Number: 40049

Heavy Duty ADA System, Universal-Mount, w/Inflation Kit

Using a 33% (Heavy Duty) duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

Features & Specifications

Features
Specifications
– 400C Compressor w/Thermal Overload Protector– 12-Volt
– Extruded Aluminum Air Tank (12-port)– Permanent Magnetic Motor
– Toggle Switch– Duty Cycle: 33% @ 100 PSI
– Air Line for Remote Mount Air Filter Installation– Max. Working Pressure: 150 PSI
– (2) Remote Mount Air Filter Relocation Fittings– Max. Amp Draw: 28 Amps
– 1/8” NPT Drain Cock– Ingress Protection Rating: IP67
– 1/4” NPT Safety Valve– Dimensions: 9″L x 4″W x 6.75″H
– (8) 1/4” NPT Hex Plug– Net Weight: 10 lbs.
– 1/4” NPT Sealed Pressure Switch (85/105 PSI)–
– (2) 1/4” NPT BSP Adapter–
– 1/4” NPT Automatic Coupler–
WIRING HARNESSDIGITAL TIRE INFLATION KIT
– 30-amp Delphi Connector Set– 30’ Inflation Hose with Automatic Couplers
– 60-amp Fuse Holder– Digital Tire Inflation Gun
– 40-amp Fuse–
– (2) 1/4” Ring Terminal
– 5/16” Ring Terminal–
– (3) Female Spade Terminal Connector–

Performance Data

PSICFMABARLPMA
0
2.6215
0
74
16
10
2.3918
1.065
20
20
2.2120
2.060
23
30
2.1122
3.056
25
40
2.0124
4.053
27
50
1.9325
5.049
28
60
1.8426
6.046
28
70
1.73277.042
28
80
1.65278.038
28
90
1.52279.035
27
100
1.452710.031
27
110
1.3527


120
1.2627


130
1.1927


140
1.0827


150
1.0126



* Supply Voltage: 13.8 Volts

Fill Rates

31” x 10.5”Fill Rate
0 to 30 PSI3 min. 00 sec. (± 10 sec.)
15 to 30 PSI1 min. 35 sec. (± 05 sec.)
33” x 12.5″Fill Rate
0 to 30 PSI4 min. 20 sec. (± 10 sec.)
15 to 30 PSI2 min. 05 sec. (± 05 sec.)
35” x 12.5”Fill Rate
0 to 30 PSI5 min. 20 sec. (± 15 sec.)
15 to 30 PSI2 min. 45 sec. (± 10 sec.)
