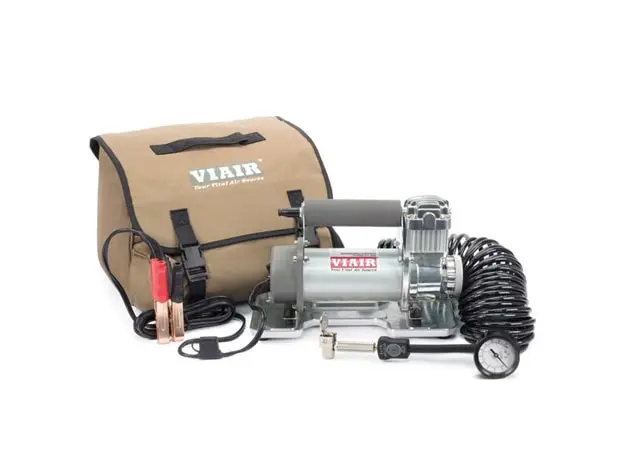

400P 24V Portable Compressor Kit (24V, 33% Duty, 150 PSI, 40 Min. @ 30 PSI)
The 24 Volt, 400P is a large portable compressor kit that can inflate
up to a 35-inch tire from 0 to 30 PSI in less than 5 minutes. Used and
approved of by off road enthusiasts worldwide, the 400P can save you
when you’re miles from home.
Please Note: The air hose supplied with this kit
may become brittle from prolonged exposure to UV/sunlight. – Stow when
not in use. Never allow the hose to come into contact with the head of
the compressor during use (melting hazard). The use of the included air
hose is not recommended in sub zero or freezing conditions. The 400P
does not work with Presta bicycle valves.
12-Volt Compressor
| PSI | CFM | A | BAR | LPM | A |
0
| 2.30 | 17
| 0
| 65.1 | 17
|
10
| 2.13 | 19
| 1.0 | 58.4 | 20
|
20
| 1.98 | 21
| 2.0 | 53.0 | 23
|
30
| 1.86 | 23
| 3.0 | 48.5 | 24
|
40
| 1.75 | 24
| 4.0 | 44.2 | 26
|
50
| 1.64 | 25
| 5.0 | 40.2 | 27
|
60
| 1.54 | 26
| 6.0 | 37.0 | 28
|
70
| 1.44 | 27
| 7.0 | 33.3 | 29
|
80
| 1.37 | 27
| 8.0 | 30.1 | 28
|
90
| 1.28 | 28
| 9.0 | 27.0 | 28
|
100
| 1.19 | 29
| 10.0 | 22.1 | 27
|
110
| 1.11 | 29
|
|
|
|
120
| 1.04 | 28
|
|
|
|
130
| 0.95 | 28
|
|
|
|
140
| 0.85 | 27
|
|
|
|
150
| 0.71 | 27
|
|
|
|
* Supply Voltage: 13.8 Volts
24-Volt Compressor
| PSI | CFM | A | BAR | LPM | A |
0
| 2.54 | 10
| 0
| 72.0 | 10
|
10
| 2.26 | 11
| 1.0 | 62.2 | 11
|
20
| 2.12 | 12
| 2.0
| 55.4 | 12
|
30
| 1.94 | 13
| 3.0 | 50.7 | 13
|
40
| 1.84 | 13
| 4.0
| 46.3 | 14 |
50
| 1.70 | 14
| 5.0 | 43.4 | 14
|
60
| 1.62 | 14
| 6.0 | 40.5 | 14 |
70
| 1.55 | 14
| 7.0 | 35.7 | 14
|
80
| 1.48 | 14
| 8.0 | 32.1 | 14 |
90
| 1.41 | 15
| 9.0 | 27.0 | 14 |
100
| 1.27 | 14 | 10.0 | 22.1 | 14
|
110
| 1.20 | 14 |
|
|
|
120
| 1.09 | 14 |
|
|
|
130
| 0.95 | 14 |
|
|
|
140
| 0.85 | 14 |
|
|
|
150
| 0.71 | 14 |
|
|
|
* Supply Voltage: 28.0 Volts
