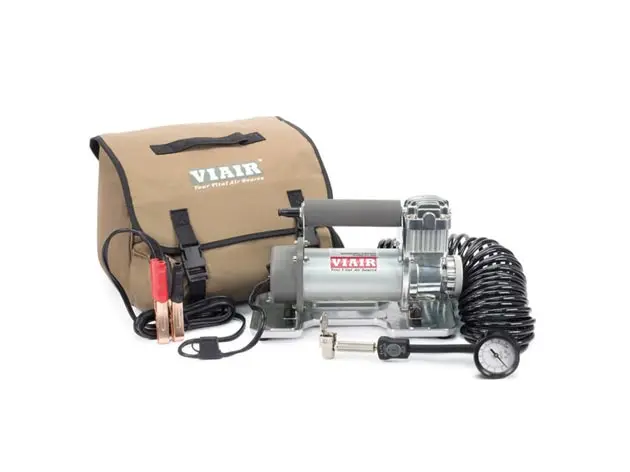

400P Portable Compressor Kit - 24 Volt

(0 review)

400P 24V Portable Compressor Kit (24V, 33% Duty, 150 PSI, 40 Min. @ 30 PSI)

$ 374.75 $ 374.75

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Barcode: 818114004100
Shipping Weight: 15 lb
Internal Reference: VA-40050
Brand: Viair
Manufacture Part Number: 40050

400P 24V Portable Compressor Kit (24V, 33% Duty, 150 PSI, 40 Min. @ 30 PSI)

The 24 Volt, 400P is a large portable compressor kit that can inflate up to a 35-inch tire from 0 to 30 PSI in less than 5 minutes. Used and approved of by off road enthusiasts worldwide, the 400P can save you when you’re miles from home.

Please Note: The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use. Never allow the hose to come into contact with the head of the compressor during use (melting hazard). The use of the included air hose is not recommended in sub zero or freezing conditions. The 400P does not work with Presta bicycle valves.

Features & Specifications

Features
Specifications
– Thermal Overload Protector– 12-Volt / 24-Volt
– 5-in-1 Inflator/Deflator Air Hose– Permanent Magnetic Motor
with Inline 100 PSI Gauge– Duty Cycle: 33% @ 100 PSI
– I-beam Sand Tray (PN 40043)– Max. Working Pressure: 150 PSI
– Diamond-Plate Sand Tray (PN 40050)– Max. 12V Amp Draw: 30 Amps
– Deluxe Dual Compartment Carry Bag– Max. 24V Amp Draw: 15 Amps
– 40-amp Inline Fuse Holder– Ingress Protection Rating: IP54
– Dual Battery Clamps– Dimensions: 10.87″L x 5.83″W x 7.48″H
– 3 pc. Inflation Tips Kit– Net Weight: 10.40 lbs.

– Power Cord Length: 8 ft.

– Air Hose Length: 25 ft.

12-Volt Compressor

PSICFMABARLPMA
0
2.3017
0
65.117
10
2.1319
1.058.420
20
1.9821
2.053.023
30
1.8623
3.048.524
40
1.7524
4.044.226
50
1.6425
5.040.227
60
1.5426
6.037.028
70
1.4427
7.033.329
80
1.3727
8.030.128
90
1.2828
9.027.028
100
1.1929
10.022.127
110
1.1129



120
1.0428



130
0.9528



140
0.8527



150
0.7127



* Supply Voltage: 13.8 Volts

24-Volt Compressor

PSICFMABARLPMA
0
2.5410
0
72.010
10
2.2611
1.062.211
20
2.1212
2.0
55.412
30
1.9413
3.050.713
40
1.8413
4.0
46.314
50
1.7014
5.043.414
60
1.6214
6.040.514
70
1.5514
7.035.714
80
1.4814
8.032.114
90
1.4115
9.027.014
100
1.271410.022.114
110
1.2014


120
1.0914


130
0.9514


140
0.8514


150
0.7114


* Supply Voltage: 28.0 Volts

12-Volt Compressor

31″ x 10.5″Fill Rate
0 to 30 PSI3 min. 00 sec. (± 10 sec.)
15 to 30 PSI1 min. 35 sec. (± 05 sec.)
33″ x 12.5″Fill Rate
0 to 30 PSI4 min. 20 sec. (± 10 sec.)
15 to 30 PSI2 min. 05 sec. (± 05 sec.)
35″ x 12.5″Fill Rate
0 to 30 PSI5 min. 20 sec. (± 15 sec.)
15 to 30 PSI2 min. 45 sec. (± 10 sec.)

24-Volt Compressor

31″ x 10.5″Fill Rate
0 to 30 PSI2 min. 50 sec. (± 10 sec.)
15 to 30 PSI1 min. 25 sec. (± 05 sec.)
33″ x 12.5″Fill Rate
0 to 30 PSI4 min. 00 sec. (± 10 sec.)
15 to 30 PSI2 min. 00 sec. (± 05 sec.)
35″ x 12.5″Fill Rate
0 to 30 PSI5 min. 05 sec. (± 15 sec.)
15 to 30 PSI2 min. 40 sec. (± 10 sec.)
