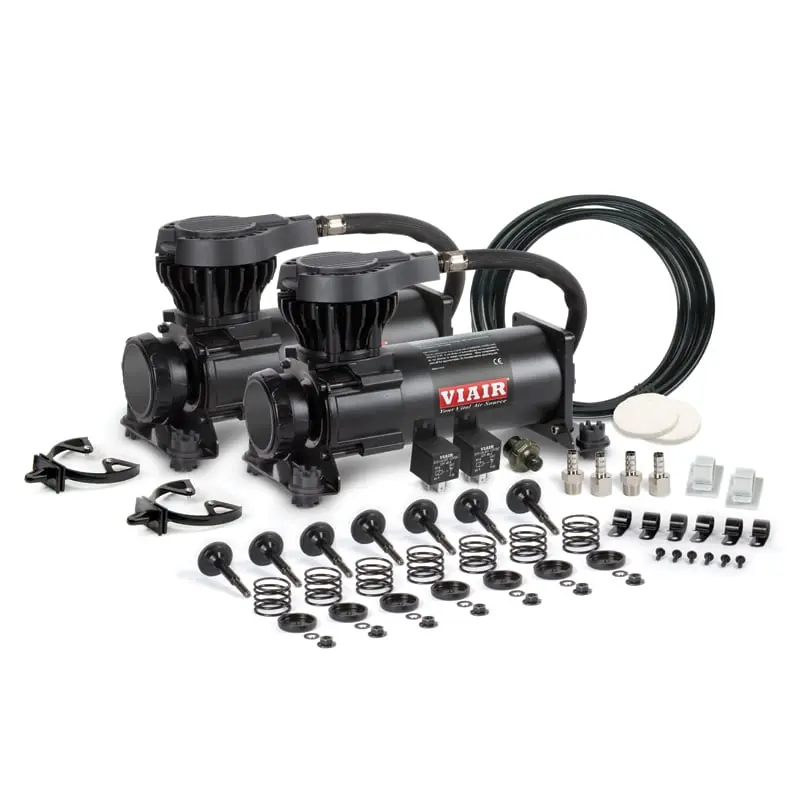

410SS Dual Pack Stealth Black

https://www.universalair.com/web/image/product.template/4737/image_1920?unique=881fdfc
(0 review)

$ 599.95 599.95 USD $ 599.95

$ 599.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004162
    Shipping Weight: 26 lb
    Internal Reference: VA-41042
    Brand: Viair
    Manufacture Part Number: 41042

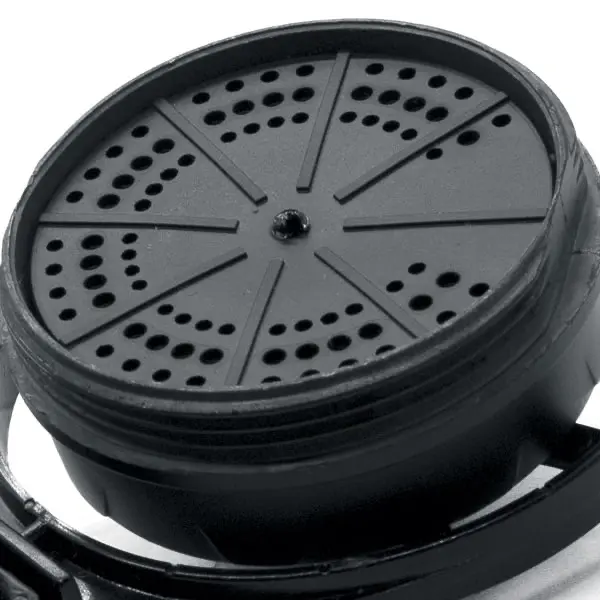

    BUILT-IN MUFFLER
    Solid metal  assembly to reduce noise levels unto 50%.*

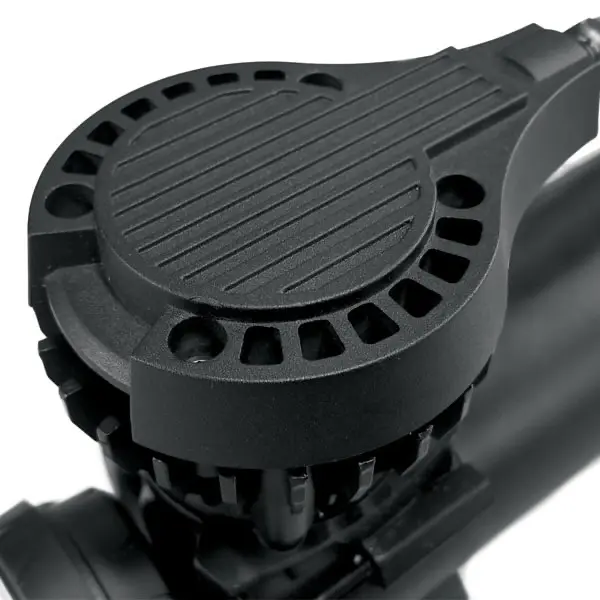

    REDESIGNED HEAD
    Helps compressors run quieter and cooler.

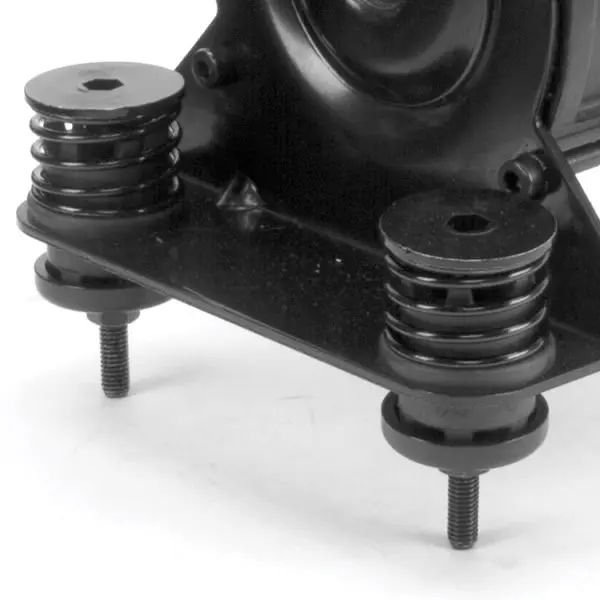

    UPGRADED MOUNTS
    Equipped with newly designed spring-loaded vibration isolators mounts for added dampening.

    VIAIR’s all-new 410 Stealth-Series (SS) compressors feature upgraded internals, newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 410 Stealth-Series compressors are equipped with spring-loaded rubber isolators and a black sleeved stainless steel leader hose with black nickel plated inline check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts.


    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    – Thermal Overload Protector
    – Heavy Duty Pressure Switch
    (165 PSI on, 200 PSI off)
    – Black Sleeved
    Stainless Steel Braided Leader Hoses
    – Inline Check Valve
    – 40-Amp 12v Relays
    – Spring Loaded Vibration Isolating Feet
    – Mounting Hardware
    – Air Line for Remote Mount Air Filter
    – Remote Mount 6-Stage
    Air Filter/Muffler Assemblies
    – (2) Replacement Air Filter Elements
    – Installation Instructions
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI
    – Duty Cycle: 50% @ 200 PSI
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Max. 12V Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Dimensions: 12.5″L x 4.4″W x 7.3″H
    – Net Weight: 19.5lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    – 2.5 Gallon Tank (P/N 91025)
    – 5.0 Gallon Tank (P/N 91050)
    – All Pressure Switches
    – All Pressure Switches w/ Relays
    – All Sealed Pressure Switches

    * For 12V Only.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    02.9430083.330
    102.75321.075.233
    202.60352.071.135
    302.48363.066.837
    402.38374.062.539
    502.26385.059.340
    602.17396.055.643
    702.11407.052.043
    802.01408.049.843
    901.93439.046.743
    1001.854410.043.343
    1101.794411.041.843
    1201.734312.039.343
    1301.664313.037.343
    1401.614314.034.342
    1501.5143
    1601.4743
    1701.4443
    1801.3543
    1901.3143
    2001.2543

    * Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 30 sec. (± 10 sec.)
    110 to 145 PSI30 sec. (± 05 sec.)
    0 to 200 PSI2 min. 25 sec. (± 10 sec.)
    165 to 200 PSI35 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 145 PSI3 min. 15 sec. (± 10 sec.)
    110 to 145 PSI1 min. 00 sec. (± 10 sec.)
    0 to 200 PSI5 min. 00 sec. (± 10 sec.)
    165 to 200 PSI1 min. 15 sec. (± 10 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
    ** Compared to VIAIR 350C/380C compressors noise levels.
