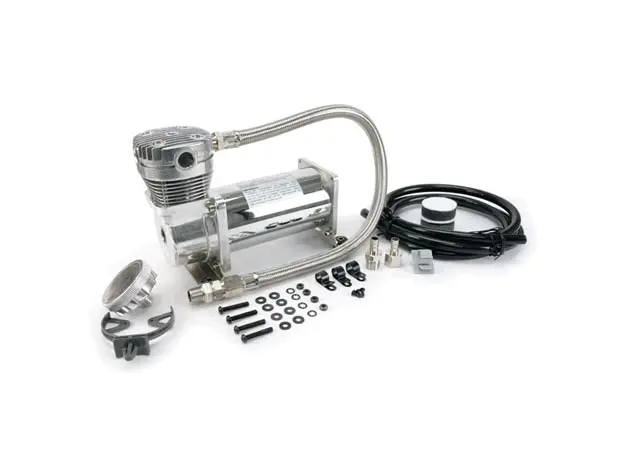

420C Chrome Compressor Kit.

https://universalair-uas.odoo.com/web/image/product.template/492/image_1920?unique=529793e
(0 review)

420C Chrome Compressor Kit, 3/8" Port (12V, 33% Duty, Sealed)

$ 390.75 390.75 USD $ 390.75

$ 390.75

    This combination does not exist.

    Contact Us



    Barcode: 818114004223
    Shipping Weight: 11 lb
    Internal Reference: VA-42042
    Brand: Viair
    Manufacture Part Number: 42042

    420C Chrome Compressor Kit, 3/8" Port (12V, 33% Duty, Sealed)

    420C features include horizontal cooling fins and a trapezoidal head design, a standard 3/8” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs..

    Features & Specification

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 33% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 28 Amps
    – Remote Mount Air Filter Assembly– Ingress Protection Rating: IP67
    – (2) Replacement Air Filter Elements– Dimensions: 10″L x 4.3″W x 6.5″H
    – Installation Instructions– Net Weight: 9.00 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		2.9516
    		0
    		85.016
    10
    		2.3818
    		1.066.019
    20
    		2.2121
    		2.062.023
    30
    		2.1223
    		3.058.025
    40
    		2.0325
    		4.053.027
    50
    		1.9226
    		5.049.027
    60
    		1.8027
    		6.044.028
    70
    		1.69287.040.028
    80
    		1.58288.037.028
    90
    		1.47289.034.028
    100
    		1.342810.0

    31.0

    		27
    110
    		1.2828


    120
    		1.1727


    130
    		1.1227


    140
    		1.0227


    150
    		0.9527


    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 27 sec. (± 05 sec.)
    85 to 105 PSI21 sec. (± 03 sec.)
    0 to 145 PSI2 min. 20 sec. (± 05 sec.)
    110 to 145 PSI48 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI2 min. 55 sec. (± 10 sec.)
    85 to 105 PSI45 sec. (± 05 sec.)
    0 to 145 PSI4 min. 50 sec. (± 10 sec.)
    110 to 145 PSI1 min. 40 sec. (± 05 sec.)
