Heavy Duty ADA Base Model 85-105

https://universalair-uas.odoo.com/web/image/product.template/1935/image_1920?unique=4d9aacf
(0 review)

Heavy Duty ADA, Base Model Kit, 85/105 PSI

$ 449.95 449.95 USD $ 449.95

$ 449.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004254
    Shipping Weight: 12 lb
    Internal Reference: VA-42045
    Brand: Viair
    Manufacture Part Number: 42045

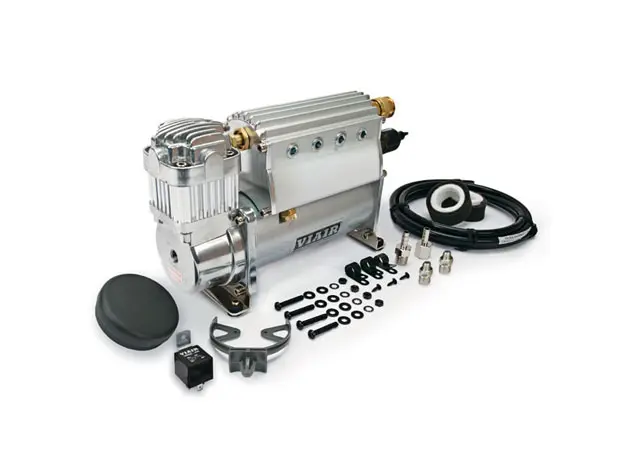

    Heavy Duty ADA, Base Model Kit, 85/105 PSI

    VIAIR Corporation is proud to offer our new Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 400C (Heavy Duty) compressor at its core.

    Note: P/N 42045 should not be used for Load Leveling. P/N 42047 should not be used for Air Lockers.

    Features & Specifications

    Features
    		Specifications
    – 400C Compressor w/Thermal Overload Protector– 12-Volt
    – Extruded Aluminum Air Tank (12-port)– Permanent Magnetic Motor
    – Pre-installed Safety Valve– Duty Cycle: 33% @ 100 PSI
    – Pre-installed 1/8” NPT Drain Cock– Max. Working Pressure: 150 PSI
    – Pre-installed Safety Valve– Max. Amp Draw: 28 Amps
    – Pre-installed 85/105 PSI Pressure Switch (P/N 42045)– Ingress Protection Rating: IP67
    – Pre-installed 110/145 PSI Pressure Switch (P/N 42047)– Dimensions: 9″L x 4″W x 6.75″H
    – (8) Pre-installed 1/4” NPT Recessed Port Plugs– Net Weight: 10 lbs.
    – Pre-installed Quick Connect Coupler–
    – 40-amp Relay–
    – (2) 1/4” NPT to 1/8” BSP Adapters–
    – 1” NPT M Barbed Fitting for 1/4” Air Line–
    – 1” NPT F Barbed Fitting for 1/4” Air Line–
     – Coiled Air Line (For Remote Mount Air Filter Installation)–
     – Air Filter Housing–
    – (2) Replacement Air Filter Elements–
     – Mounting Hardware–

    Performance Data

    PSICFMABARLPMA
    0
    		2.6215
    		0
    		74
    		16
    102.3918
    		1.0
    		65
    		20
    202.2120
    		2.060
    		23
    302.1122
    		3.056
    		25
    402.0124
    		4.053
    		27
    501.9325
    		5.049
    		28
    601.8426
    		6.046
    		28
    701.73277.042
    		28
    801.65278.038
    		28
    901.52279.035
    		27
    1001.452710.031
    		27
    1101.3527


    1201.2627


    1301.1927


    1401.0827


    1501.0126


    * Supply Voltage: 13.8 Volts

    Fill Rates

    31” x 10.5”Fill Rate
    0 to 30 PSI3 min. 00 sec. (± 10 sec.)
    15 to 30 PSI1 min. 35 sec. (± 05 sec.)
    33” x 12.5″Fill Rate
    0 to 30 PSI4 min. 20 sec. (± 10 sec.)
    15 to 30 PSI2 min. 05 sec. (± 05 sec.)
    35” x 12.5”Fill Rate
    0 to 30 PSI5 min. 20 sec. (± 15 sec.)
    15 to 30 PSI2 min. 45 sec. (± 10 sec.)
