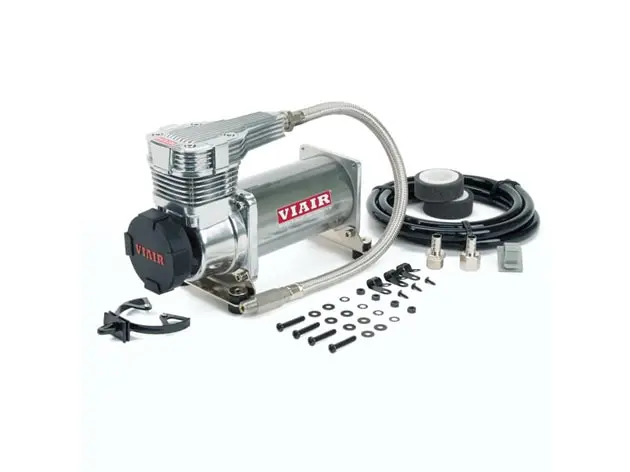

425C 175 PSI Platinum Compressor Kit (Gen 2) w/ Matte Black Filter, 3/8" Port (12V, 33% Duty @ 175 PSI)

https://universalair-uas.odoo.com/web/image/product.template/493/image_1920?unique=d3c1cef
(0 review)

425C 175 PSI Platinum Compressor Kit (Gen 2) w/ Matte Black Filter, 3/8" Port (12V, 33% Duty @ 175 PSI)

$ 344.95 344.95 USD $ 344.95

$ 344.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004285
    Shipping Weight: 11 lb
    Internal Reference: VA-42500
    Brand: Viair
    Manufacture Part Number: 42500

    425C 175 PSI Platinum Compressor Kit (Gen 2) w/ Matte Black Filter, 3/8" Port (12V, 33% Duty @ 175 PSI)

    VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 2.40 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI,and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.

    The 425C features a newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – 425C (Platinum or Stealth Black) Compressor– Permanent Magnetic Motor
    – Stainless Steel Braided Leader Hose with Inline Check Valve– Duty Cycle: 50% @ 100 PSI
    – Air Filter Assembly– Duty Cycle: 33% @ 175 PSI
    – VIAIR Removable Filter Cover– Max. Working Pressure: 175 PSI
    – (2) Replacement Air Filter Elements– Max. Air Tank Size: 5.0 Gallon
    – Remote Mount Bracket– Max. Amp Draw: 30 Amps
    – Set of Remote Mount Fitting– Ingress Protection Rating: IP67
    – Set of Spare Air Filter Elements– Dimensions: 9.25″L x 4.14″W x 6.59″H
    – (2) Leader Hose Clips– Net Weight: 11.10 lbs.
    – Air Line Clip with Included Hardware–
    – Mounting Hardware–
    – Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)–
    – 40-Amp Relay–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		2.4020
    		0
    		69.020
    10
    		2.3122
    		1.063.021
    20
    		2.2024
    		2.059.024
    30
    		2.0824
    		3.055.025
    40
    		1.9726
    		4.052.027
    50
    		1.8527
    		5.047.028
    60
    		1.77286.043.029
    70
    		1.67287.040.030
    80
    		1.59288.037.030
    90
    		1.49299.035.028
    100
    		1.412910.031.028
    110
    		1.283011.028.027
    120
    		1.2829
    		12.025.026
    130
    		1.2228


    140
    		1.1428


    150
    		1.0627



    160
    		0.9826


    170
    		0.9026


    175
    		0.8726


    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 175 PSI2 min. 25 sec. (± 10 sec.)
    140 to 175 PSI42 sec. (± 03 sec.)
    2.5 Gallon TankFill Rate
    0 to 175 PSI3 min. 15 sec. (± 10 sec.)
    140 to 175 PSI55 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 175 PSI6 min. 15 sec. (± 15 sec.)
    140 to 175 PSI1 min. 57 sec. (± 05 sec.)
