425C Dual Pack Platinum (Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo (175 PSI, 425C/2)
VIAIR’s brand new 425C Gen. 2 compressor delivers
game-changing performance, capable of putting out 4.80 CFM at zero PSI
head pressure. The 425C is our first compressor with duty cycle of 33%
at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal
components that make it a true 175 PSI-rated working pressure pump.

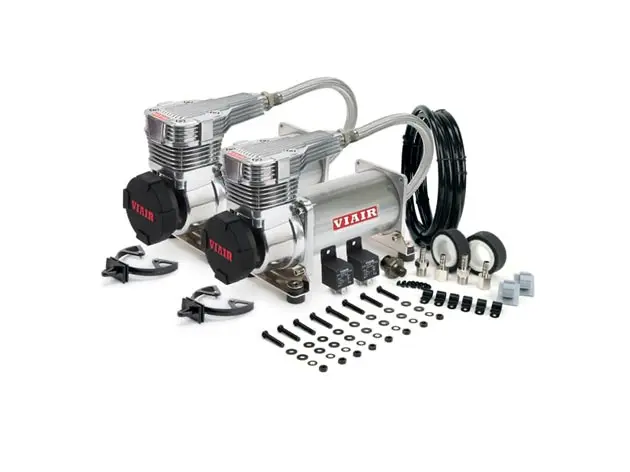

The 425C Dual Performance Value Pack features two 12V
425C compressors with newly-developed sleek head design, increased duty
cycle and quieter dB levels. The 425C is available in Platinum or
Stealth Black, and comes equipped with a stainless steel braided leader
hose with an inline check valve.
Note: Use thread
sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque is 12 to 15 ft. lbs.
Performance Data
| PSI | CFM | A | BAR | LPM | A |
0
| 4.80 | 40
| 0
| 136.0 | 40
|
10
| 4.63 | 43
| 1.0 | 125.0 | 45
|
20
| 4.42 | 47
| 2.0 | 118..0 | 48
|
30
| 4.15 | 48
| 3.0 | 111.0 | 53
|
40
| 3.93 | 52
| 4.0 | 100.0 | 55
|
50
| 3.70 | 54
| 5.0 | 95.0 | 56
|
60
| 3.53 | 55
| 6.0 | 84.0 | 57 |
70
| 3.35 | 56
| 7.0 | 80.0 | 57 |
80
| 3.18
| 57
| 8.0 | 72.0 | 57 |
90
| 2.98 | 57
| 9.0 | 69.0 | 56
|
100
| 2.83 | 57
| 10.0 | 59.0 | 55
|
110
| 2.68 | 58
| 11.0 | 55.0 | 53
|
120
| 2.55 | 57 | 12.0 | 49.0 | 51
|
130
| 2.44 | 56
|
|
|
|
140
| 2.27 | 55
|
|
|
|
150
| 2.10
| 54
|
|
|
|
160
| 1.95 | 53
|
|
|
|
170
| 1.80 | 52
|
|
|
|
175
| 1.74 | 51
|
|
|
|
* Supply Voltage: 13.8 Volts
