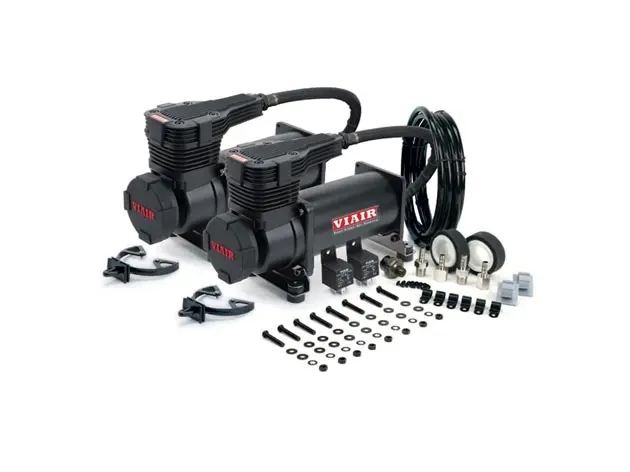

425C Dual Pack Stealth Black (Gen 2)

https://www.universalair.com/web/image/product.template/496/image_1920?unique=c470b87
(0 review)

425C Dual Pack Stealth Black (Gen 2) w/Matte Black Filter with filter cap cover w/Viair logo (175 PSI, 425C/2)

$ 398.95 398.95 USD $ 398.95

$ 398.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004315
    Shipping Weight: 21 lb
    Internal Reference: VA-42548
    Brand: Viair
    Manufacture Part Number: 42548

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    Capable of putting out 4.94 CFM at zero PSI head pressure.

    FASTER FILLS
    Fill your tank from 145 to 175PSI
    in just 1 min 05 sec.

    VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 4.94 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.

    The 425C Dual Performance Value Pack features two 12V 425C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

    Additional Info Download:

    Manual

    Dimensional Drawing

    Wiring Diagram

    Features & Specifications

    Features
    		Specifications
    – (2) 425C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – Stainless Steel Braided Leader Hose with Inline Check Valve– Permanent Magnetic Motor
    – (2) Air Filter Assemblies– Duty Cycle: 50% @ 100 PSI
    – (2) VIAIR Removable Filter Covers– Duty Cycle: 33% @ 175 PSI
    – (2) Replacement Air Filter Elements– Max. Working Pressure: 175 PSI
    – (2) Remote Mount Brackets– Max. Air Tank Size: 5.0 Gallon
    – (2) Sets of Remote Mount Fittings– Combined Max. Amp Draw: 60 Amps
    – Set of Spare Air Filter Elements– Ingress Protection Rating: IP67
    – (2) Leader Hose Clips– Dimensions: 9.25″L x 4.14″W x 6.59″H
    – (6) Air Line Clips with Included Hardware– Net Weight: 11.10 lbs.
    – (8) Sets of Nuts, Bolts, Washers, and Lock Washers–
    – (2) Heavy Duty 40-Amp Relays–
    – (1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		4.8040
    		0
    		136.040
    10
    		4.6343
    		1.0125.045
    20
    		4.4247
    		2.0118.048
    30
    		4.1548
    		3.0111.053
    40
    		3.9352
    		4.0100.055
    50
    		3.7054
    		5.095.056
    60
    		3.5355
    		6.084.057
    70
    		3.3556
    		7.080.057
    80
    		3.18578.072.057
    90
    		2.98579.069.056
    100
    		2.835710.059.055
    110
    		2.685811.055.053
    120
    		2.555712.049.051
    130
    		2.4456


    140
    		2.2755


    150
    		2.1054


    160
    		1.9553


    170
    		1.8052



    175
    		1.7451

    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 175 PSI1 min. 40 sec. (± 05 sec.)
    140 to 175 PSI28 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 175 PSI3 min. 06 sec. (± 10 sec.)
    140 to 175 PSI57 sec. (± 05 sec.)
    – (2) 425C (Platinum or Stealth Black) Compressors
    w/Thermal Overload Protectors
    – Stainless Steel Braided Leader Hose with Inline Check Valve
    – (2) Air Filter Assemblies
    – (2) VIAIR Removable Filter Covers
    – (2) Replacement Air Filter Elements
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – Set of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers, and Lock Washers
    – (2) Heavy Duty 40-Amp Relays
    – (1) Heavy Duty Pressure Switch (140 PSI on, 175 PSI off)
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 50% @ 100 PSI
    – Duty Cycle: 33% @ 175 PSI
    – Max. Working Pressure: 175 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 60-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 9.25″L x 3.31″W x 6.59″H
    – Net Weight: 11.10 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    04.94360140.036
    104.57391.0125.841
    204.31432.0116.746
    304.07463.0104.249
    403.86484.094.251
    503.50505.086.352
    603.27516.078.753
    703.09527.072.554
    802.88538.063.353
    902.74549.056.352
    1002.565410.048.350
    1102.395411.041.848
    1202.155312.036.746
    1301.9952
    1401.8551
    1501.6250
    1601.4848
    1701.3847
    1751.2946

    * Supply Voltage: 13.8 Volts

    2.0 GALLON TANKFILL RATE
    0 to 175 PSI1 min. 20 sec. (± 10 sec.)
    140 to 175 PSI25 sec. (± 05 sec.)
    2.5 GALLON TANKFILL RATE
    0 to 175 PSI1 min. 35 sec. (± 10 sec.)
    140 to 175 PSI30 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 175 PSI3 min. 20 sec. (± 10 sec.)
    140 to 175 PSI1 min. 05 sec. (± 05 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
