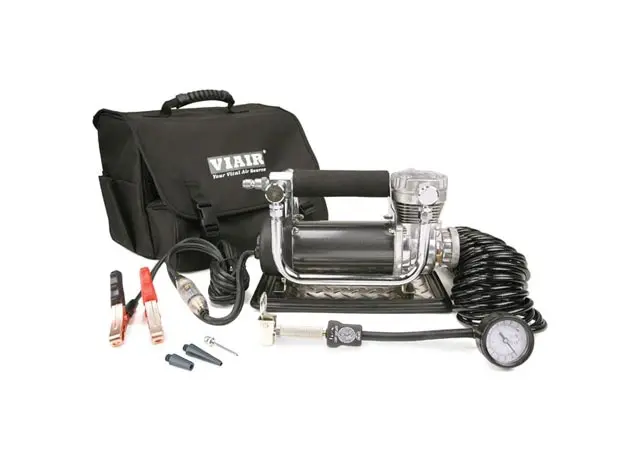

440P Portable Compressor Kit

440P Portable Compressor Kit (12V, CE, 33% Duty, 150 PSI, 30 Min. @ 30 PSI)

440P is the ultimate portable compressor kit. It can inflate a 37-inch tire from 0 to 30 PSI in less than 5 minutes. The 440P is the largest and most powerful portable compressor kit available today.

Please Note: The 440P does not work with Presta bicycle valves.

Features & Specifications

Features	Specifications
– Thermal Overload Protector	– 12-Volt
Vibration-Resistant Diamond-Plate Sand Tray	– Permanent Magnetic Motor
– 5-in-1 Inflator/Deflator Air Hose with Inline 120 PSI Gauge	– Duty Cycle: 33% @ 100 PSI
– Deluxe Dual Compartment Carry Bag	– Max. Working Pressure: 150 PSI
– 50-amp Inline Fuse Holder	– Max. Amp Draw: 44 Amps
– Dual Battery Clamps	– Ingress Protection Rating: IP54
– 3 pc. Inflation Tips Kit	– Dimensions: 10.87″L x 5.83″W x 6.54″H
–	– Net Weight: 12.65 lbs.
–	– Power Cord Length: 8 ft.
–	– Air Hose Length: 25 ft.

Performance Data

PSI	CFM	A	BAR	LPM	A
0	3.00	34	0	85.0	34
10	2.79	36	1.0	74.3	37
20	2.42	38	2.0	65.5	40
30	2.30	40	3.0	58.9	41
40	2.12	41	4.0	53.1	43
50	2.01	42	5.0	47.1	44
60	1.84	43	6.0	41.6	42
70	1.71	44	7.0	36.9	41
80	1.53	43	8.0	31.6	39
90	1.44	42	9.0	27.3	38
100	1.32	41	10.0	22.7	36
110	1.18	40
120	1.07	39
130	0.97	38
140	0.85	36
150	0.75	35

* Supply Voltage: 13.8 Volts

Fill Rates

35″ x 12.5″	Fill Rate
0 to 30 PSI	4 min. 30 sec. (± 10 sec.)
15 to 30 PSI	2 min. 15 sec. (± 05 sec.)
37″ x 12.5″	Fill Rate
0 to 30 PSI	4 min. 50 sec. (± 10 sec.)
15 to 30 PSI	2 min. 40 sec. (± 05 sec.)

VIAIR Tractor Tire Inflation

User Manual

Dimensional Drawing
