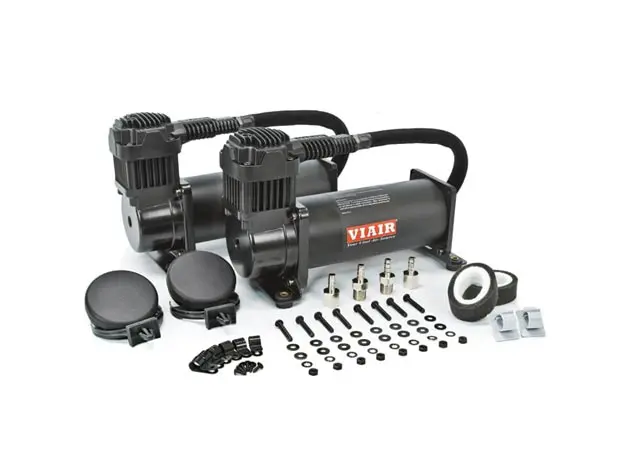

444C Dual Stealth Black Value Pack

https://universalair-uas.odoo.com/web/image/product.template/499/image_1920?unique=529793e
(0 review)

Dual Stealth Black 444C High-Performance Value Pack (200 PSI, 444C/2)

$ 385.95 385.95 USD $ 385.95

$ 385.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004421
    Shipping Weight: 23.54 lb
    Internal Reference: VA-44442
    Brand: Viair
    Manufacture Part Number: 44442

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    Delivers industry leading performance of 100% duty cycle @ 200 PSI.

    FASTER FILLS
    Fill your tank from 165 to 200PSI
    in just 1 min 35 sec.

    VIAIR’s 444C Dual Performance Value Pack air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 444C air compressors, which are also equipped with a stainless steel braided leader hose with an inline check valve.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram​​

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – (2) 444C (Chrome or Stealth Black) Air Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – Intercooler Head (Patents Pending)– Permanent Magnetic Motor
    – (2) Air Filter Assemblies– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – (2) Remote Mount Brackets– Max. Working Pressure: 200 PSI
    – (2) Sets of Remote Mount Fittings– Max. Air Tank Size: 10.0 Gallon
    – (2) Sets of Spare Air Filter Elements– Combined Max. Amp Draw: 40 Amps
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Ingress Protection Rating: IP67
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve– Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
    – (6) Airline Clips with Included Hardware– Net Weight: 21.60 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		3.53250100.025
    10
    		3.2527
    		1.088.529
    20
    		2.9731
    		2.081.333
    30
    		2.8633
    		3.075.634
    40
    		2.7234
    		4.070.636
    50
    		2.5835
    		5.065.537
    60
    		2.4736
    		6.059.039
    70
    		2.3537
    		7.053.140
    80
    		2.1938
    		8.047.739
    90
    		2.0339
    		9.043.239
    100
    		1.9040
    		10.038.838
    110
    		1.7440
    		11.034.737
    120
    		1.6539
    		12.030.636
    130
    		1.5339
    		13.025.834
    140
    		1.4138
    		14.023.833
    150
    		1.3238



    160
    		1.2237



    170
    		1.1336



    180
    		1.0035



    190
    		0.8934



    200
    		0.8533



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 200 PSI2 min. 30 sec. (± 10 sec.)
    165 to 200 PSI46 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 200 PSI5 min. 30 sec. (± 10 sec.)
    165 to 200 PSI1 min. 35 sec. (± 05 sec.)
    – (2) 444C Stealth Black Air Compressors
    w/Thermal Overload Protectors
    – Intercooler Head (Patents Pending)
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – (6) Airline Clips with Included Hardware
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
    – Max. Working Pressure: 200 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
    – Net Weight: 21.60 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    03.53250100.025
    103.25271.088.529
    202.97312.081.333
    302.86333.075.634
    402.72344.070.636
    502.58355.065.537
    602.47366.059.039
    702.35377.053.140
    802.19388.047.739
    902.03399.043.239
    1001.904010.038.838
    1101.744011.034.737
    1201.653912.030.636
    1301.533913.025.834
    1401.413814.023.833
    1501.3238
    1601.2237
    1701.1336
    1801.0035
    1900.8934
    2000.8533

    *Supply Voltage: 13.8 Volts

    2.5 GALLON TANKFILL RATE
    0 to 200 PSI2 min. 30 sec. (± 10 sec.)
    165 to 200 PSI46 sec. (± 05 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 200 PSI5 min. 30 sec. (± 10 sec.)
    165 to 200 PSI1 min. 35 sec. (± 05 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
