450C Dual Silver Value Pack

Dual Silver 450C Value Pack (150 PSI, 450C/2, 110/145 P. Switch, 40 Amp Relay/2)a

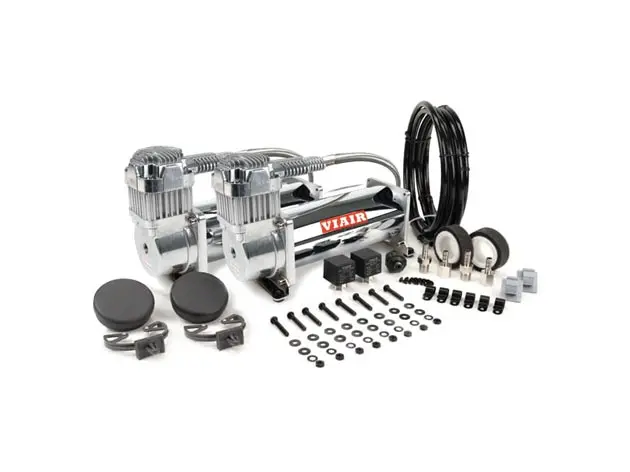

450C Dual Performance Value Packs include two 450C compressors, two heavy duty 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware. Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Features & Specifications

Features	Specifications
– (2) 450C (Chrome or Silver) Air Compressors w/Thermal Overload Protectors	– 12-Volt
– (2) Air Filter Assemblies	– Permanent Magnetic Motor
– (2) Remote Mount Brackets	– Duty Cycle: 100% @ 100 PSI
– (2) Sets of Remote Mount Fittings	– Max. Working Pressure: 150 PSI
– (2) Sets of Spare Air Filter Elements	– Max. Air Tank Size: 10.0 Gallon
– (2) Leader Hose Clips	– Combined Max. Amp Draw: 44 Amps
– (6) Air Line Clips with Included Hardware	– Ingress Protection Rating: IP67
– (8) Sets of Nuts, Bolts, Washers and Lock Washers	– Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit)
– (2) 40-Amp Relays	– Net Weight: 21.60 lbs.
– (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)	–
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve	–
– Air Line (For Remote Mount Filter Installation)	–

Performance Data

PSI	CFM	A	BAR	LPM	A
0	3.28	28	0	93.0	28
10	3.04	29	1.0	83.0	30
20	2.79	32	2.0	75.4	34
30	2.65	34	3.0	71.0	37
40	2.54	36	4.0	66.6	40
50	2.44	38	5.0	61.0	41
60	2.33	40	6.0	56.0	42
70	2.19	41	7.0	52.0	44
80	2.05	42	8.0	47.0	43
90	1.94	43	9.0	42.3	42
100	1.85	44	10.0	37.5	41
110	1.72	44
120	1.62	43
130	1.50	42
140	1.38	41
150	1.27	41

* Supply Voltage: 13.8 Volts

Fill Rates

2.0 Gallon Tank	Fill Rate
0 to 145 PSI	1 min. 13 sec. (± 05 sec.)
110 to 145 PSI	23 sec. (± 03 sec.)
2.5 Gallon Tank	Fill Rate
0 to 145 PSI	1 min. 30 sec. (± 05 sec.)
110 to 145 PSI	31 sec. (± 03 sec.)
5.0 Gallon Tank	Fill Rate
0 to 145 PSI	3 min. 10 sec. (± 10 sec.)
110 to 145 PSI	1 min. 05 sec. (± 05 sec.)
