450C Dual Chrome Value Pack

https://www.universalair.com/web/image/product.template/501/image_1920?unique=050b562

150 PSI, 450C/2, 110/145 P. Switch, 40 Amp Relay/2

$ 385.95 385.95 USD $ 385.95

$ 385.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004049
    Shipping Weight: 24 lb
    Internal Reference: VA-45013
    Brand: Viair
    Manufacture Part Number: 45013

    BUILT-IN RELIABILITY
    1/4” NPT stainless steel braided leader hose
    with an inline check valve.

    WORKHORSE
    Delivers game-changing performance, rated at 100% duty cycle @ 150 PSI.

    FASTER FILLS
    Fill your tank from 110 to 145PSI
    in just 1 min 05 sec.

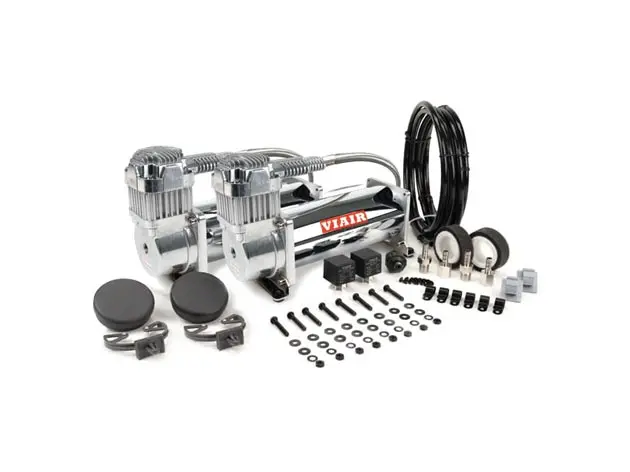

    VIAIR’s 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line. With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs. The 450C Dual Performance Pack kit features two VIAIR 450C Silver or Chrome air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.

    Additional Info Download:
    Manual

    Dimensional Drawing

    Wiring Diagram​

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – (2) 450C (Chrome or Silver) Air Compressors
    w/Thermal Overload Protectors    		– 12-Volt
    – (2) Air Filter Assemblies– Permanent Magnetic Motor
    – (2) Remote Mount Brackets– Duty Cycle: 100% @ 100 PSI
    – (2) Sets of Remote Mount Fittings– Max. Working Pressure: 150 PSI
    – (2) Sets of Spare Air Filter Elements– Max. Air Tank Size: 10.0 Gallon
    – (2) Leader Hose Clips– Combined Max. Amp Draw: 44 Amps
    – (6) Air Line Clips with Included Hardware– Ingress Protection Rating: IP67
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers– Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit)
    – (2) 40-Amp Relays– Net Weight: 21.60 lbs.
    – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)–
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve–
    – Air Line (For Remote Mount Filter Installation)–

    Performance Data

    PSICFMABARLPMA
    0
    		3.2828
    		0
    		93.028
    10
    		3.0429
    		1.083.030
    20
    		2.7932
    		2.075.434
    30
    		2.6534
    		3.071.037
    40
    		2.5436
    		4.066.640
    50
    		2.4438
    		5.061.041
    60
    		2.3340
    		6.056.042
    70
    		2.1941
    		7.052.044
    80
    		2.0542
    		8.047.043
    90
    		1.9443
    		9.042.342
    100
    		1.8544
    		10.037.541
    110
    		1.7244



    120
    		1.6243



    130
    		1.5042



    140
    		1.3841



    150
    		1.2741



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.0 Gallon TankFill Rate
    0 to 145 PSI1 min. 13 sec. (± 05 sec.)
    110 to 145 PSI23 sec. (± 03 sec.)
    2.5 Gallon TankFill Rate
    0 to 145 PSI1 min. 30 sec. (± 05 sec.)
    110 to 145 PSI 31 sec. (± 03 sec.)
    5.0 Gallon TankFill Rate
    0 to 145 PSI3 min. 10 sec. (± 10 sec.)
    110 to 145 PSI1 min. 05 sec. (± 05 sec.)
    – (2) 450C Chrome Air Compressors
    w/Thermal Overload Protectors
    – (2) Air Filter Assemblies
    – (2) Remote Mount Brackets
    – (2) Sets of Remote Mount Fittings
    – (2) Sets of Spare Air Filter Elements
    – (2) Leader Hose Clips
    – (6) Air Line Clips with Included Hardware
    – (8) Sets of Nuts, Bolts, Washers and Lock Washers
    – (2) 40-Amp Relays
    – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
    – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
    – Air Line (For Remote Mount Filter Installation)
    – 12-Volt
    – Permanent Magnetic Motor
    – Duty Cycle: 100% @ 100 PSI
    – Max. Working Pressure: 150 PSI
    – Max. Air Tank Size: 10.0 Gallon
    – Combined Max. Amp Draw: 46-Amps
    – Ingress Protection Rating: IP67
    – Max Ambient Temp: +158°F
    – Min Ambient Temp: -40°F
    – Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit)
    – Net Weight: 21.60 lbs.

    Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
    Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

    PSICFMABARLPMA
    03.2828093.028
    103.04291.083.030
    202.79322.075.434
    302.65343.071.037
    402.54364.066.640
    502.44385.061.041
    602.33406.056.042
    702.19417.052.044
    802.05428.047.043
    901.94439.042.342
    1001.854410.037.541
    1101.7244
    1201.6243
    1301.5042
    1401.3841
    1501.2741

    * Supply Voltage: 13.8 Volts

    2.0 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 13 sec. (± 05 sec.)
    110 to 145 PSI23 sec. (± 03 sec.)
    2.5 GALLON TANKFILL RATE
    0 to 145 PSI1 min. 30 sec. (± 05 sec.)
    110 to 145 PSI31 sec. (± 03 sec.)
    5.0 GALLON TANKFILL RATE
    0 to 145 PSI3 min. 10 sec. (± 10 sec.)
    110 to 145 PSI1 min. 05 sec. (± 05 sec.)

    * Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
