450C Compressor Kit Single

https://universalair-uas.odoo.com/web/image/product.template/500/image_1920?unique=529793e
(0 review)

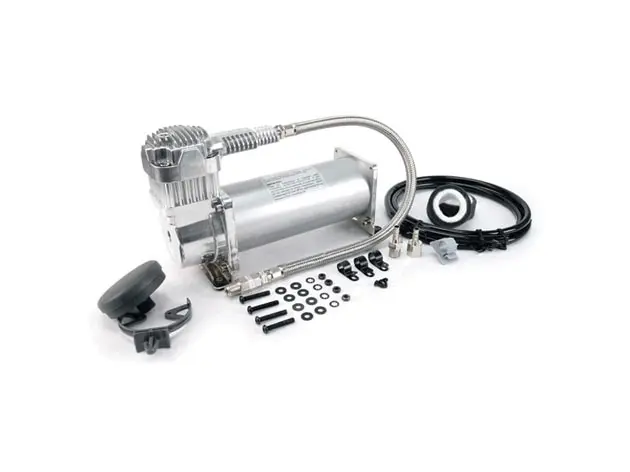

450C Compressor Kit (12V, 100% Duty, Sealed)

$ 389.25 389.25 USD $ 389.25

$ 389.25

    This combination does not exist.

    Contact Us



    Barcode: 818114004506
    Shipping Weight: 12 lb
    Internal Reference: VA-45040
    Brand: Viair
    Manufacture Part Number: 45040

    450C Compressor Kit (12V, 100% Duty, Sealed)

    450C is a continuous duty cycle compressor. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

    Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– 12-Volt
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 100% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – Stainless Steel Braided Leader Hose– Max. Air Tank Size: 5.0 Gallon
    – Air Line for Remote Mount Air Filter– Max. 12V Amp Draw: 23 Amps
    – Remote Mount Air Filter Assembly– Ingress Protection Rating: IP67
    – (2) Replacement Air Filter Elements– Dimensions: 10.6″L x 4″W x 6.87″H
    – Installation Instructions– Net Weight: 10.80 lbs.

    Performance Data

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    10
    		1.7514
    		1.047.615
    20
    		1.6016
    		2.043.317
    30
    		1.5217
    		3.038.218
    40
    		1.3918
    		4.034.019
    50
    		1.2719
    		5.030.520
    60
    		1.1819
    		6.028.121
    70
    		1.0920
    		7.026.422
    80
    		1.0420
    		8.025.023
    90
    		0.9721
    		9.023.022
    100
    		0.9422
    		10.021.021
    110
    		0.9023



    120
    		0.8623



    130
    		0.8122



    140
    		0.7621



    150
    		0.7220



    * Supply Voltage: 13.8 Volts

    Fill Rates

    2.5 Gallon TankFill Rate
    0 to 105 PSI1 min. 55 sec. (± 10 sec.)
    85 to 105 PSI28 sec. (± 05 sec.)
    0 to 145 PSI3 min. 02 sec. (± 10 sec.)
    110 to 145 PSI59 sec. (± 05 sec.)
    5.0 Gallon TankFill Rate
    0 to 105 PSI4 min. 00 sec. (± 10 sec.)
    85 to 105 PSI58 sec. (± 05 sec.)
    0 to 145 PSI6 min. 25 sec. (± 15 sec.)
    110 to 145 PSI2 min. 11 sec.(± 10 sec.)
