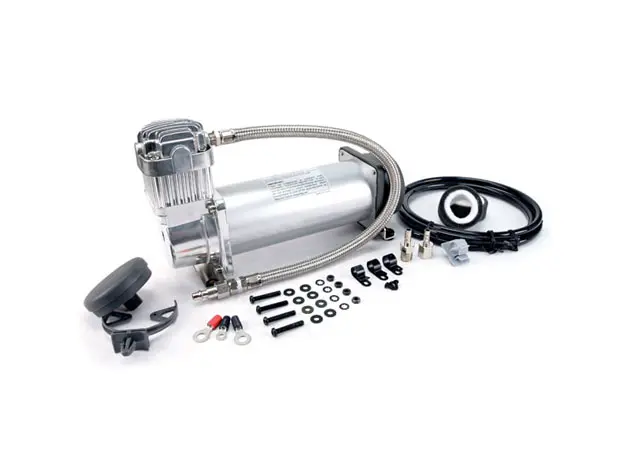

450H Hardmount Compressor Kit (12V, 100% Duty, Sealed)

$ 339.95 339.95 USD $ 339.95

$ 339.95

    This combination does not exist.

    Contact Us



    Barcode: 818114004520
    Shipping Weight: 13 lb
    Internal Reference: VA-45042
    Brand: Viair
    Manufacture Part Number: 45042

    450H Hardmount Compressor Kit (12V, 100% Duty, Sealed)

    4050H is a continuous duty, hardmount compressor intended to directly fill tires or other items using a open-ended coil hose (not included). The 450H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

    Features & Specifications

    Features
    		Specifications
    – Thermal Overload Protector– Installation Instructions
    – Check Valve– Permanent Magnetic Motor
    – Vibration Isolators– Duty Cycle: 100% @ 100 PSI
    – Mounting Hardware– Max. Working Pressure: 150 PSI
    – 1/4″ Quick Connect Stud– Max. Amp Draw: 23 Amps
    – Stainless Steel Braided Leader Hose– Ingress Protection Rating: IP54
    – Air Line for Remote Mount Air Filter– Dimensions: 11.63″L x 3.94″W x 6.75″H
    – Remote Mount Air Filter Assembly– Net Weight: 11.05 lbs.
    – (2) Replacement Air Filter Elements–
    – Installation Instructions–

    Performance Data

    PSICFMABARLPMA
    0
    		1.8012
    		0
    		51.012
    10
    		1.7514
    		1.047.615
    20
    		1.6016
    		2.043.317
    30
    		1.5215
    		3.038.218
    40
    		1.3918
    		4.034.019
    50
    		1.2719
    		5.030.520
    60
    		1.1819
    		6.028.121
    70
    		1.0920
    		7.026.422
    80
    		1.0420
    		8.025.023
    90
    		0.97229.023.022
    100
    		0.942210.023.021
    110
    		0.9023



    120
    		0.8623



    130
    		0.8122



    140
    		0.7621



    150
    		0.7220



    * Supply Voltage: 13.8 Volts

    Fill Rate

    33″ x 12.5″Fill Rate
    0 to 30 PSI5 min. 30 sec. (± 10 sec.)
    15 to 30 PSI2 min. 50 sec. (± 05 sec.)
    35″ x 12.5″Fill Rate
    0 to 30 PSI6 min. 55 sec. (± 15 sec.)
    15 to 30 PSI3 min. 30 sec. (± 10 sec.)
    37″ x 12.5″Fill Rate
    0 to 30 PSI7 min. 56 sec. (± 15 sec.)
    15 to 30 PSI4 min. 09 sec. (± 10 sec.)
